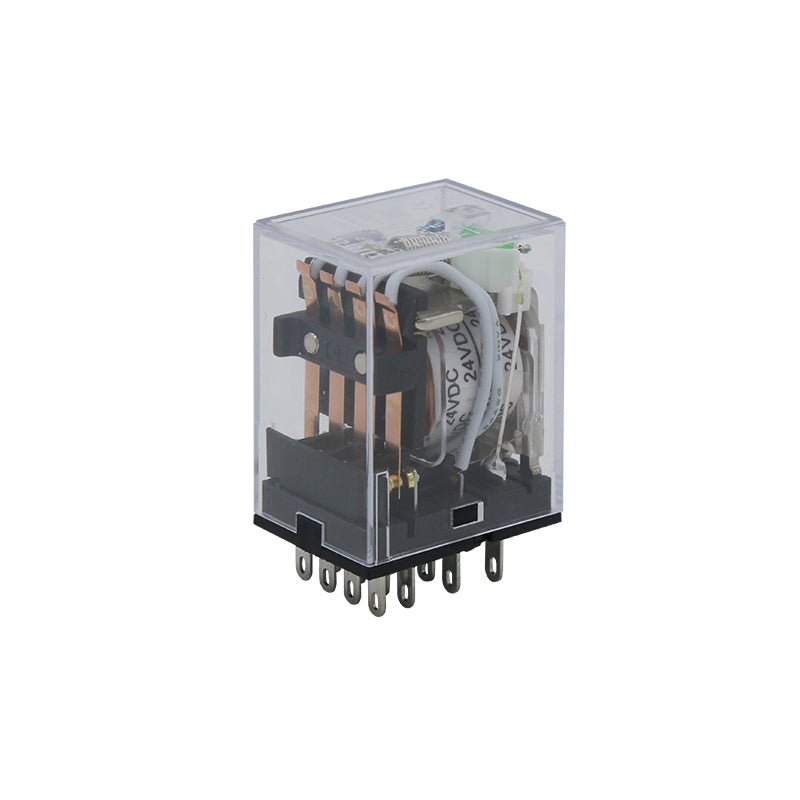

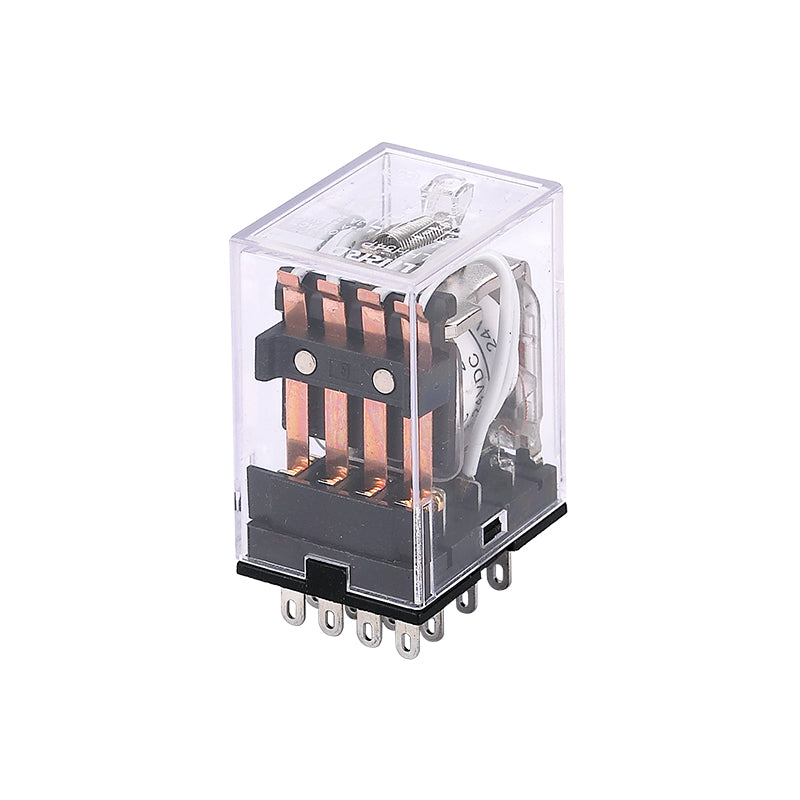

Front Main-LHH54P

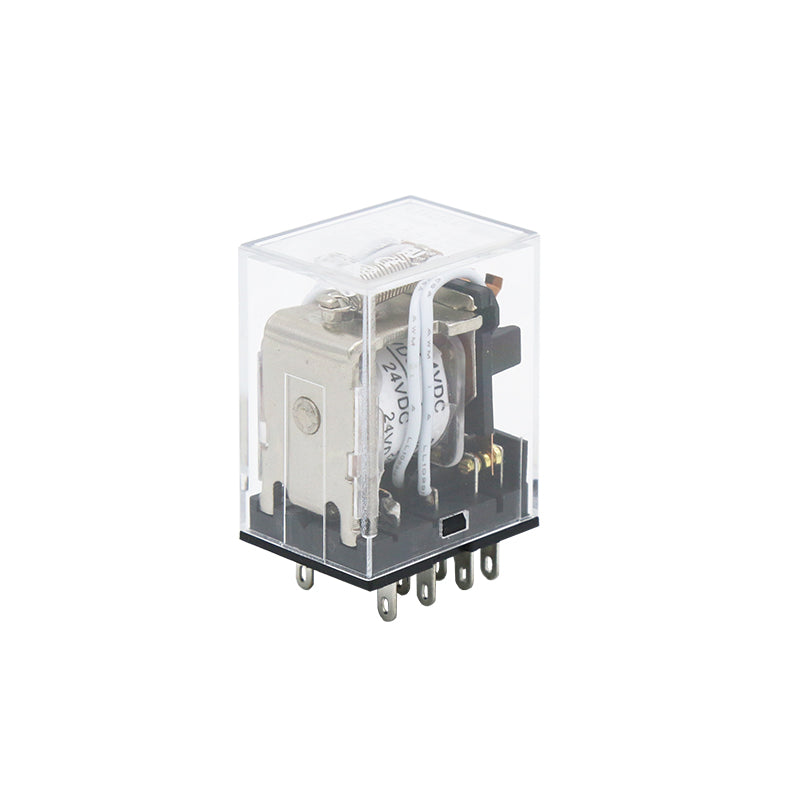

Front Back-LHH54P
Front Side-LHH54P

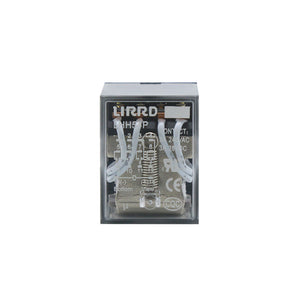

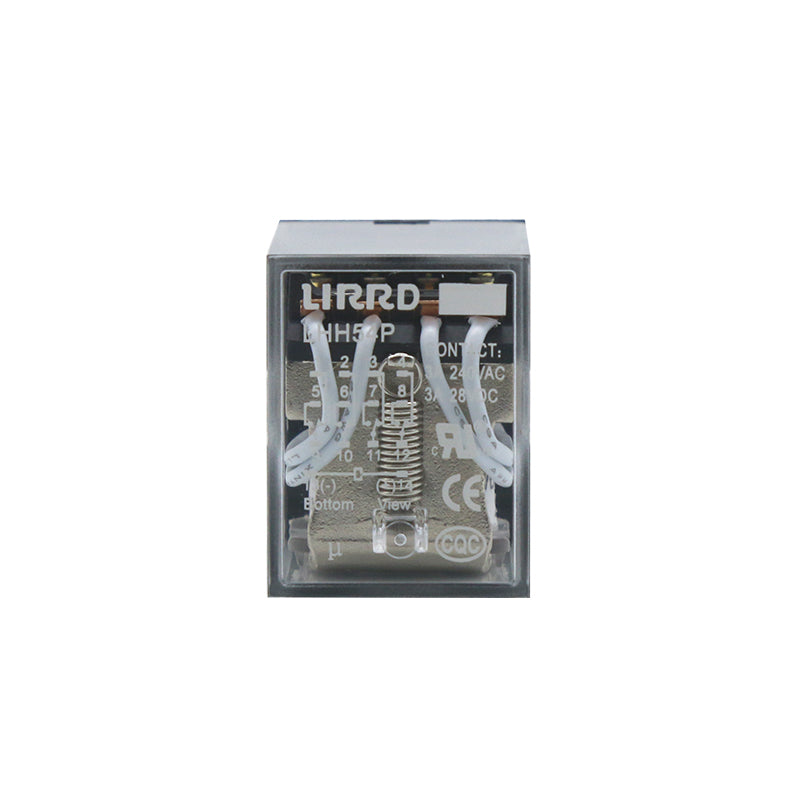

Panel-LHH54P

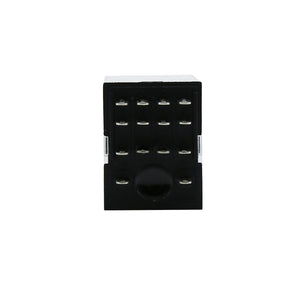

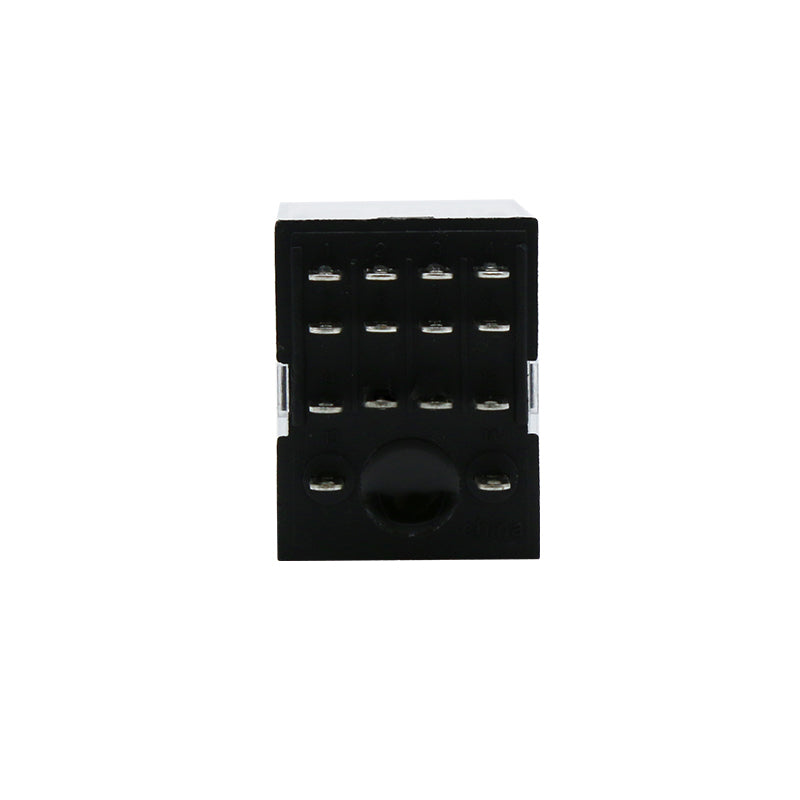

Bottom View-Pins-LHH54P

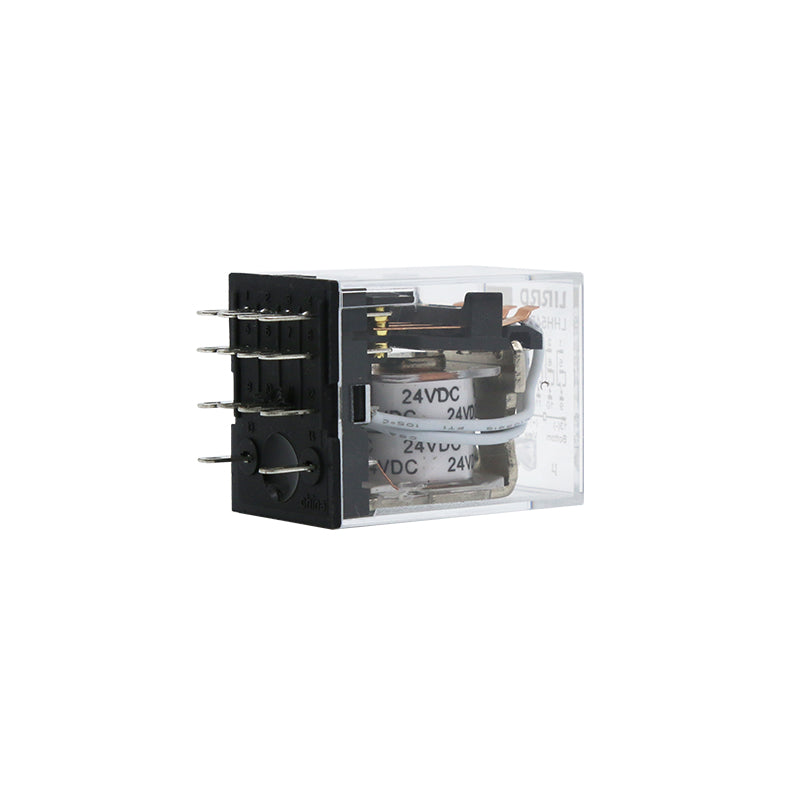

Side View-LHH54P

Miniature Electromagnetic Relay LHH54P

Regular price
$2.00
Sale price
$2.00

Front View-LHH54PApplication of Electromagnetic RelayElectromagnetic Relay Series
Model LHH52P LHH53P LHH54P
Dimention(mm) 27.3*21*35.2
Contact Form 2Z 2H 2D 3Z 3H 3D 4Z 4H 4D
Contact Material Silver Alloy
Resistance Performance Of Contactor Capacity LHH52P/53P: 5A/28VDC, 5A/240VAC
LHH54P: 3A/28VDC, 3A/240VAC
Coil Power at 23°C DC(W) ≤0.9W
AC(VA) ≤1.2VA
Coil Voltage DC(V) 6~220V
AC(V) 6~380V
Pick-up Voltage at 23°C  DC≤75%  AC≤80%
Drop-out Voltage at 23°C   DC≥10%  AC≥30%
Max Voltage at 23°C 110%
Contact Resistance(at 6VDC 1A) ≤100mΩ
Dielectric Strength Between Open Contacts ≥1000VAC 50Hz/1min Leakage Current 1mA
Contacts Pieces ≥1000VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts ≥1500VAC 50Hz/1min Leakage Current 1mA
Insulation Resistance(MΩ) at 500VDC ≥500MΩ
Service Life Electrical 105 Times(Frequency:On 1 Time/1S,Off 1 Time/1S)
Mechanical 106 Times(Frequency:300 Times/1min)
Ambient Temperature -25°C ~ +55°C
Teminal Type Insert Type, Welding Type
Suitable Socket PYF08A PYF08A-E PYF11A PYF11A-E PYF14A PYF14A-E
Product Weight 30g
Same Reference MY2 MY3 MY4



LHH Series Installation Dimension and Connecting Diagram
