High Power Relay LJQX-30F/2Z
High Power Relay LJQX-30F/2Z
High Power Relay LJQX-30F/2Z
High Power Relay LJQX-30F/2Z
High Power Relay LJQX-30F/2Z
High Power Relay LJQX-30F/2Z
High Power Relay LJQX-30F/2Z
High Power Relay LJQX-30F/2Z
High Power Relay LJQX-30F/2Z

High Power Relay LJQX-30F/2Z

Regular price
Sold out
Sale price
$4.27

Relay Application

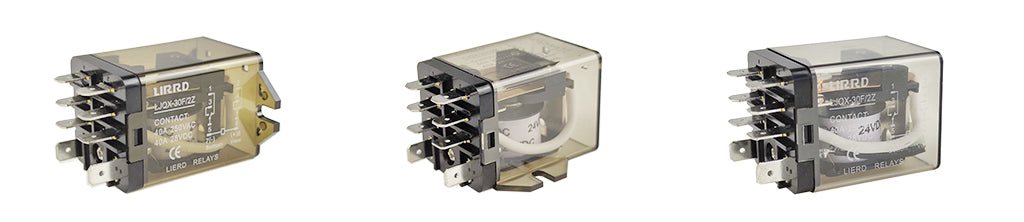

LJQX-30F-2Z Series

Model LJQX-30F/1Z LJQX-30F/2Z
Dimention(mm) 55.7*46.5*40.4
Contact Form 1Z 1H 1D 2Z 2H 2D
Contact Material Silver Alloy
Resistance Performance Of Contactor Capacity 40A/28VDC, 40A/250VAC
Coil Power at 23°C DC(W) <2.5W
AC(VA) <5.5VA
Coil Voltage DC(V) 6~220V
AC(V) 6~380V
Pick-up Voltage at 23°C  DC≤75%  AC≤80%
Drop-out Voltage at 23°C   DC≥10%  AC≥30%
Max Voltage at 23°C 110%
Contact Resistance(at 6VDC 1A) ≤100mΩ
Dielectric Strength Between Open Contacts ≥1000VAC 50Hz/1min Leakage Current 1mA
Contacts Pieces ≥1500VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts ≥1500VAC 50Hz/1min Leakage Current 1mA
Insulation Resistance(MΩ) at 500VDC ≥1000MΩ
Service Life Electrical 10^5 Times(Frequency:On 1 Time/1S,Off 1 Time/1S)
Mechanical 10^6 Times(Frequency:300 Times/1min)
Ambient Temperature -25°C ~ +55°C
Teminal Type Screw Mounting Welding Type
Suitable Socket /
Product Weight 100g 105g
Same Reference  /


Approved Standards

Agency Standard File No.
CE EN 60947-1: 2004 T2M20511-0737-E-16

LJQX-30F Installation Dimensions and Connection Diagram
