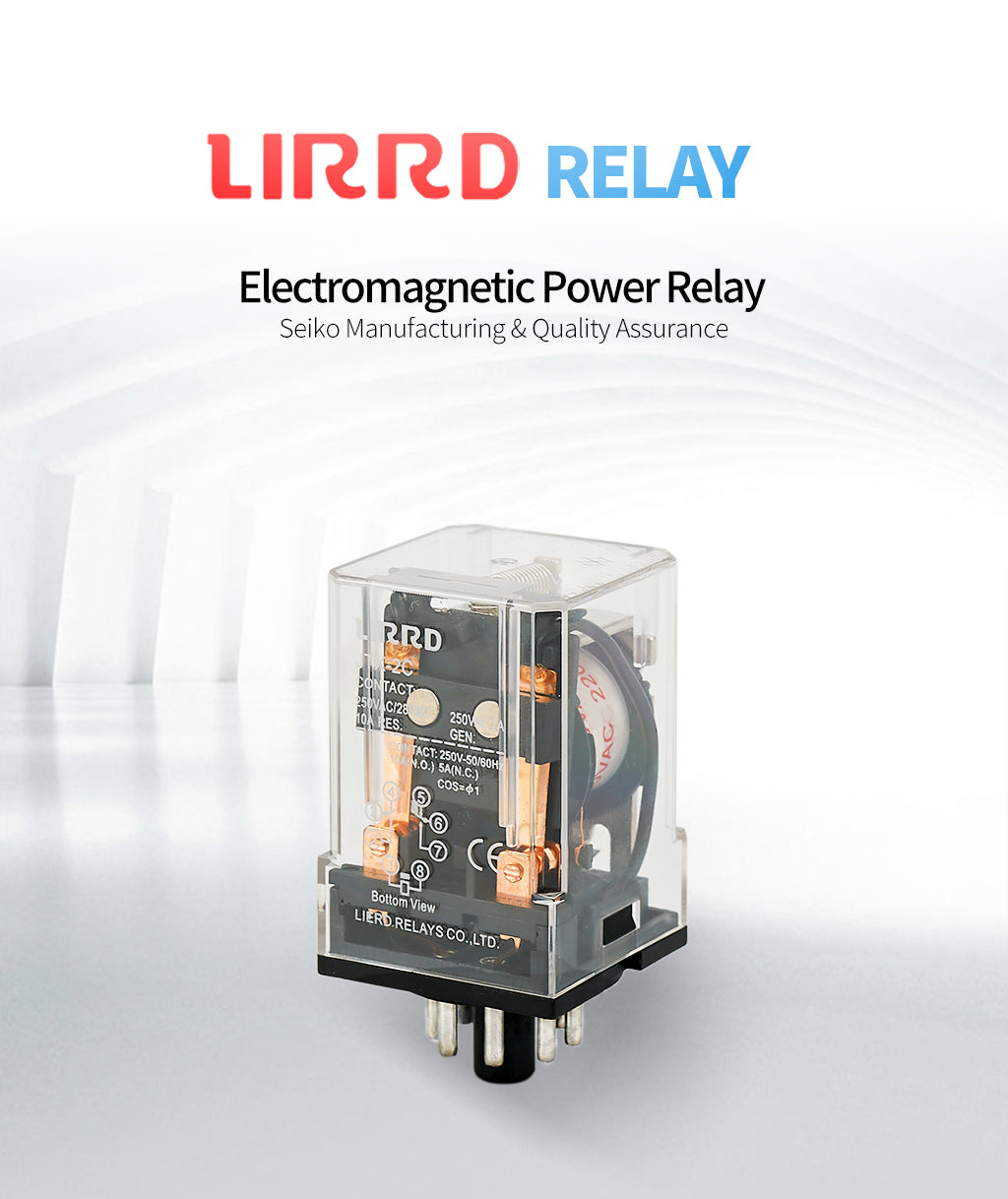

| Model |
LJQX-10F |
LJTX |
| Dimention(mm) |
34.5*34.5*53 |
| Contact Form |
2Z 2H 2D |
3Z 3H 3D |
| Contact Material |
Silver Alloy |
| Resistance Performance Of Contactor Capacity |
5A/28VDC, 5A/250VAC |
| Coil Power at 23°C |
DC(W) |
≤2W |
| AC(VA) |
≤3.5VA |
| Coil Voltage |
DC(V) |
6~220V |
| AC(V) |
6~380V |
| Pick-up Voltage at 23°C |
DC≤75% AC≤80% |
| Drop-out Voltage at 23°C |
DC≥10% AC≥30% |
| Max Voltage at 23°C |
110% |
| Contact Resistance(at 6VDC 1A) |
≤100mΩ |
| Dielectric Strength |
Between Open Contacts |
≥1200VAC 50Hz/1min Leakage Current 1mA |
| Contacts Pieces |
≥1500VAC 50Hz/1min Leakage Current 1mA |
| Between Coil & Contacts |
≥1500VAC 50Hz/1min Leakage Current 1mA |
| Insulation Resistance(MΩ) at 500VDC |
≥100MΩ |
| Service Life |
Electrical |
105 Times(Frequency:On 1 Time/1S,Off 1 Time/1S) |
| Mechanical |
106 Times(Frequency:300 Times/1min) |
| Ambient Temperature |
-25°C ~ +55°C |
| Teminal Type |
Insert Type |
| Suitable Socket |
LPF083A LPF083A-E LPL08 |
LPF113A LPF113A-E LPL11 |
| Product Weight |
76g |
