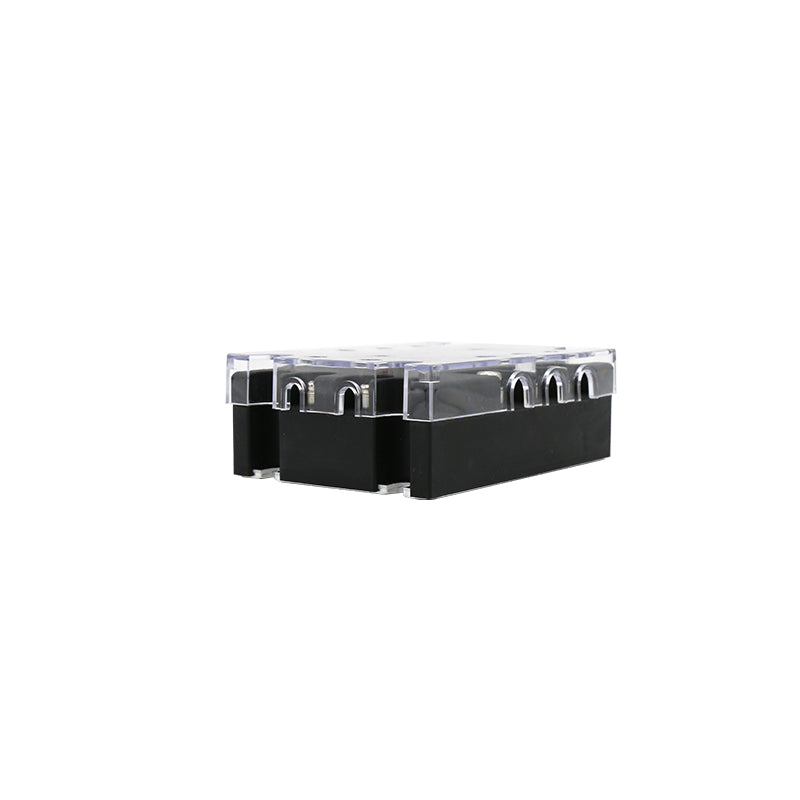

Front Main-LRSSR-3DA

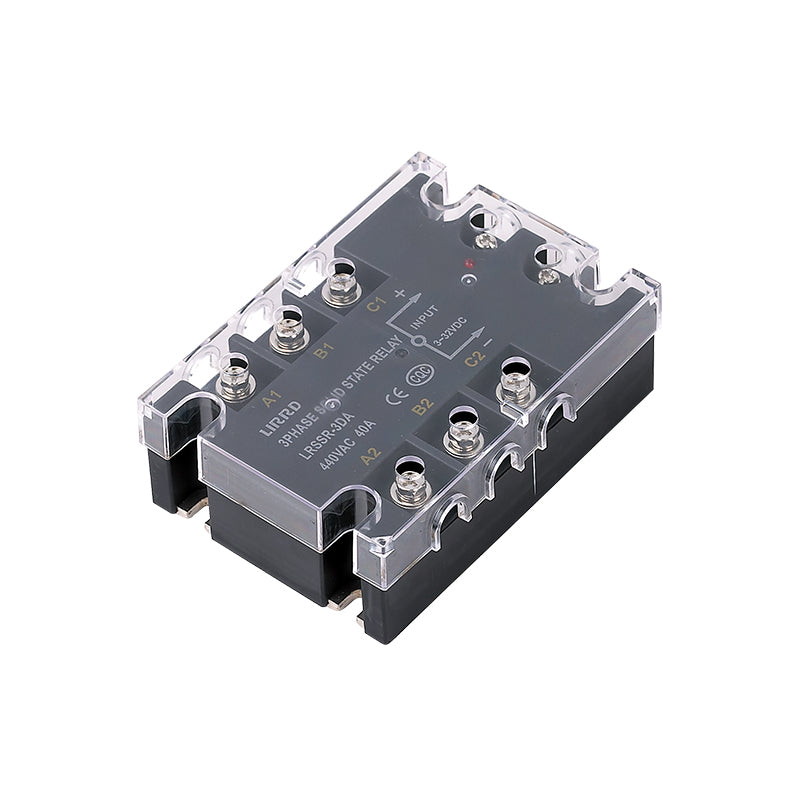

Top Side-LRSSR-3DA

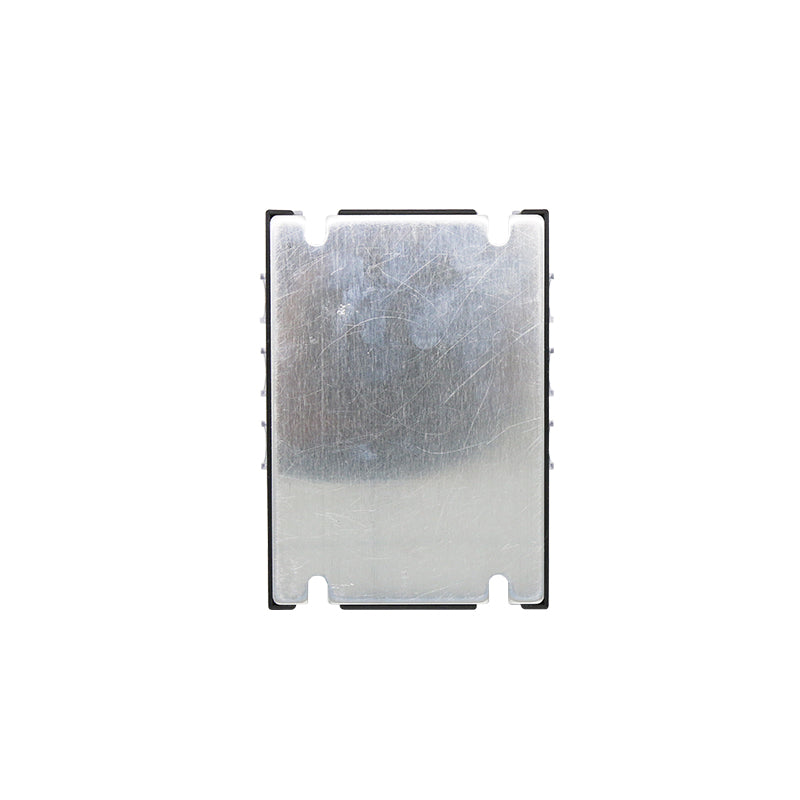

Side View-LRSSR-3DA

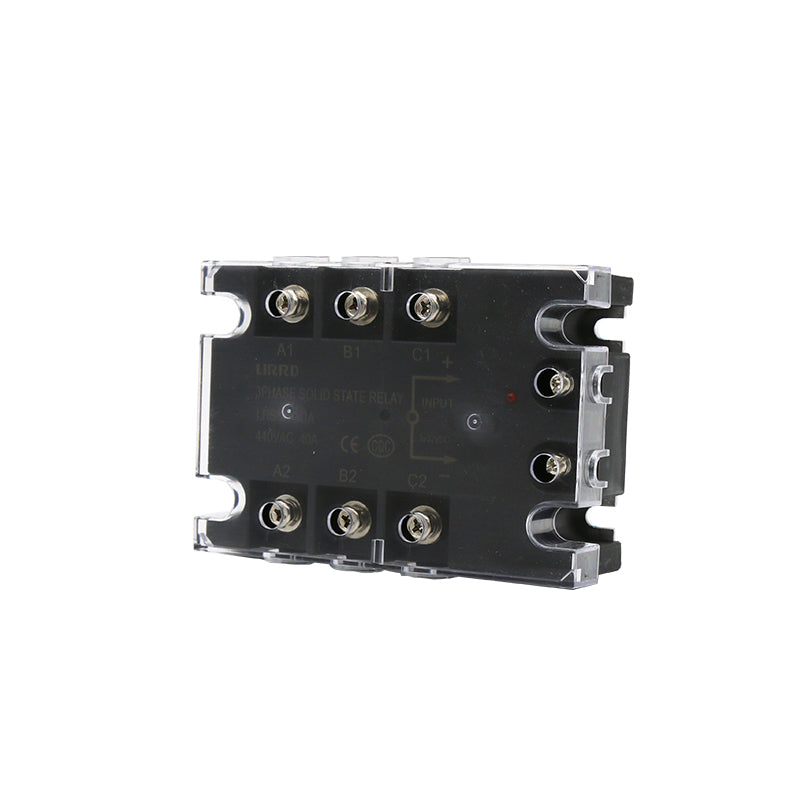

Bottom View-LRSSR-3DA

DC to AC 3 Phase Solid State Relay

Regular price
$12.83
Sale price
$12.83

SSR Application
Model LRSSR-3AA LRSSR-3DA
Load Voltage(V) 24~440, 48~480, 90~660
Load Current(A) 5, 10, 20, 30, 40, 50, 60, 80, 100
Dielectric Strength(Vac) 2500
Insulation Resistance(MΩ) 100
Control Voltage(Vdc) 90-280/280-440 3-32
Control Current(mA) ≤10 ≤25
On Voltage Drop(V) ≤1.5
Off Leakage Current(mA) ≤10
Frequency Range(Hz) 47~63
on-off Time(ms) 1/2 Cycle
Action State Indication LED
Ambient Temperature -30℃~+75℃
Mounting Method Bolt Fixation
Same Reference SSR, JG-2FA, JG2FB, JG-2FC, JGX
Directions Load Current Resistance above DC 5A Must Be Set Radiator


Approved Standards

Agency Standard File No.
CE EN 60947-1: 2004 T2M20511-0737

Dimension-LRSSR3Connecting Diagram-LRSSR3Radiator-LRSSR3

Q/XWQHI007-2003 norm for general solid state relays stipulates product symbol for general solid state relays, include code of main names, input and output code, output voltage and current, output type. For example:

Symbol of Solid State Relays

Notice: The type code includes O, OL, 1 and 1L, respectively means zero crossing type, zero crossing suitable for inductive load, stochastic type, and stochastic type suitable for inductive load.
