Time Relay LH3Y-2 10S/30S/60S

Time Relay LH3Y-2 10S/30S/60S

Regular price: Sold out
Sale price: $5.12

Rated Voltage

Full Timing Range

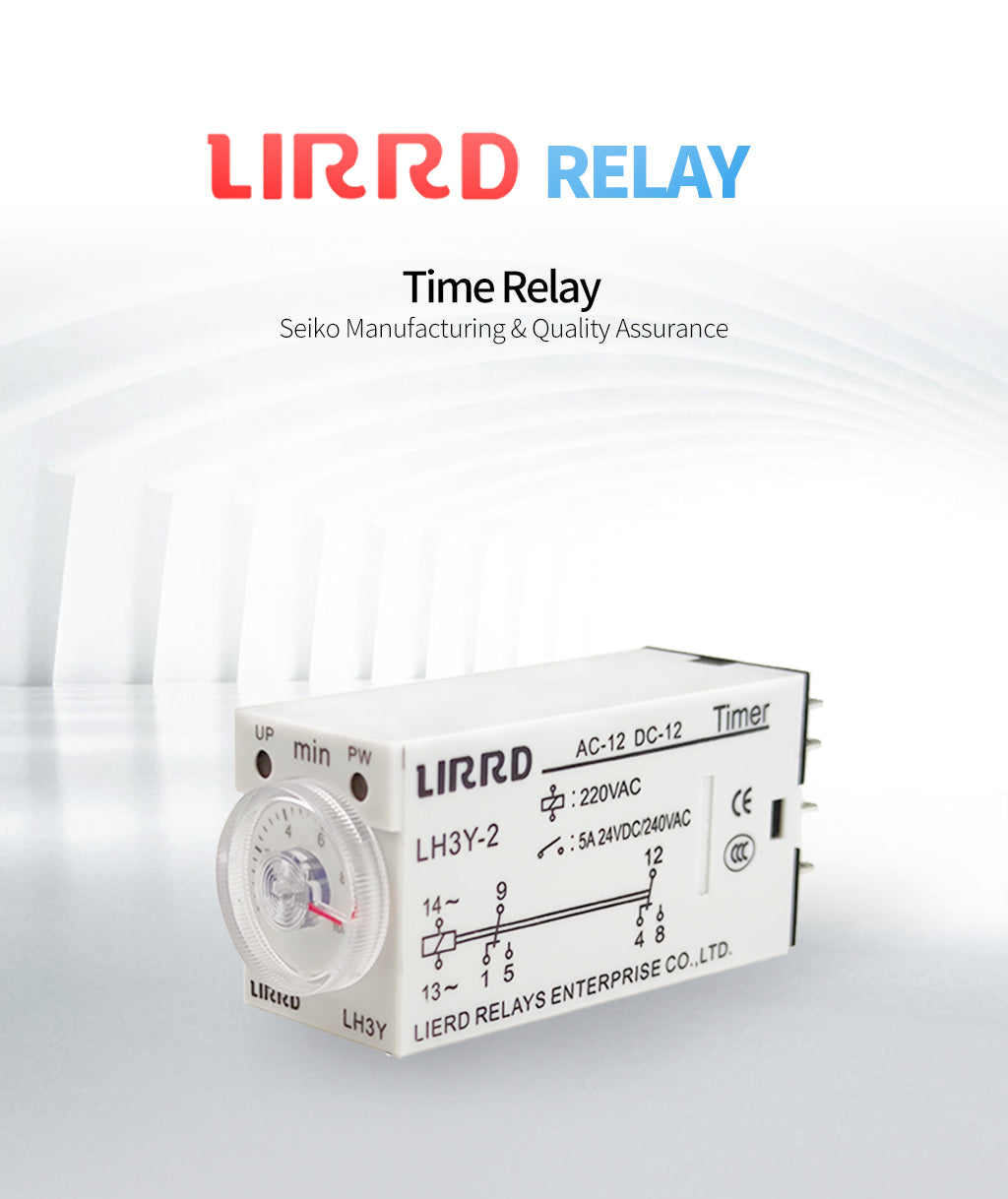

Front_View-LH3Y-2

Relay Application

Classification		Time Relay
Model		LH3Y
Dimension(mm)		28.0H * 21.5W * 63.0L
Full Timing Range		SEC:1, 5, 10, 30, 60
		MIN:3, 5, 10, 30, 60
		HR:3, 5, 10, 12
Rated Voltage		AC: 110V, 220V 50/60Hz
		DC: 12V, 24V
Indicator Operating		Power, up
Contact	Model	H3Y-2(ST6P-2)	H3Y-4(ST6P-4)
	1C Time Limit
	2C Time Limit	5A	3A(4C)
	1C Instantaneous
Service Life	Mechanical	5*10⁶ times
	Electrical	10⁵ times
Accuracy	Repeat Error	±3% max.	±1.5% max.
	Setting Error	±10% max ± 50ms
	Voltage Error	± 2% max.
	Temp Error	± 5% max.
Reset Time		0.2sec max.
Power Consumpting		3VA
Ambient Temperature		-10~+55 °C
Ambient Humidity		48~85%RH
Weight		45g
Mounting&Socket	Surface	PYF08A	PYF14A
	Flush	With Y-20 adapter

LH3Y_Installation_Dimensions_and_Connection_Diagram
