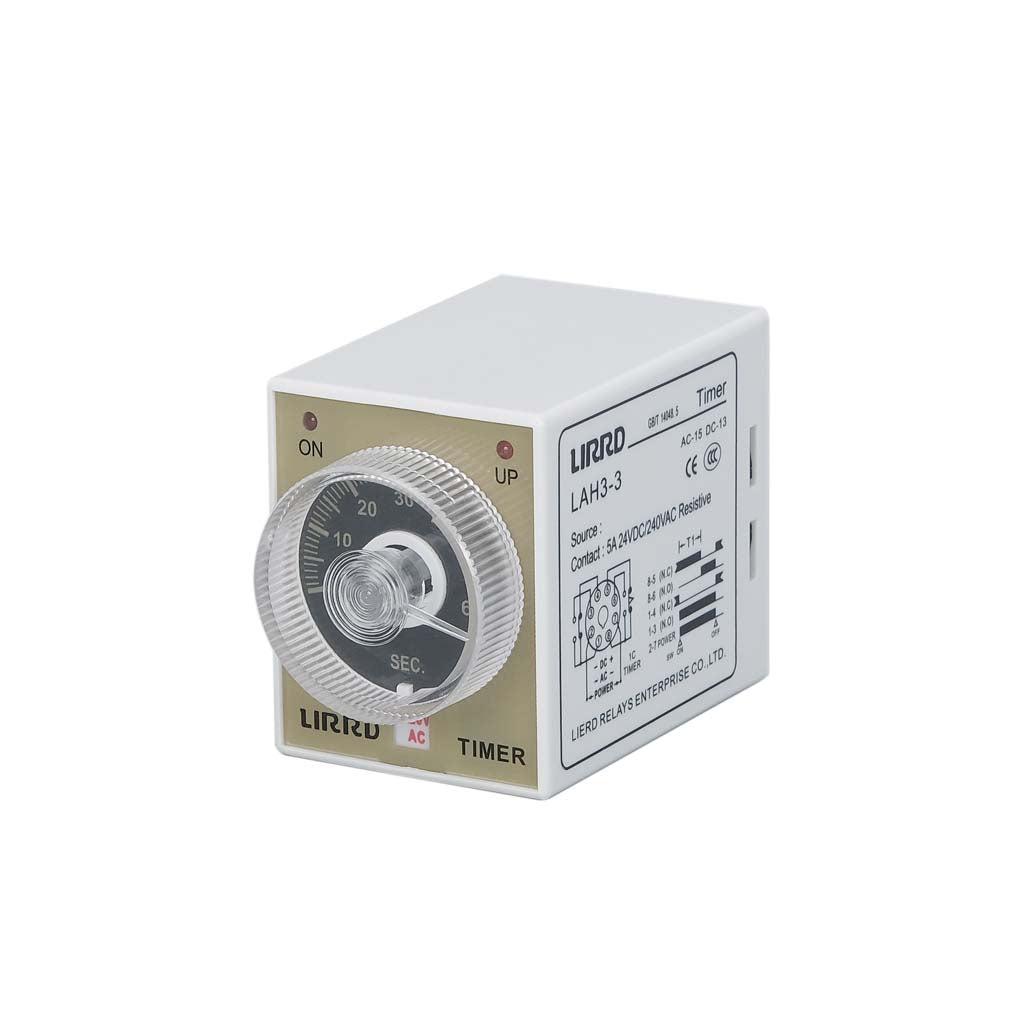

Time Relay LAH3-3 10, 30, 60 Seconds Range
Time Relay LAH3-3 10, 30, 60 Seconds Range
Time Relay LAH3-3 10, 30, 60 Seconds Range
Time Relay LAH3-3 10, 30, 60 Seconds Range
Time Relay LAH3-3 10, 30, 60 Seconds Range

Time Relay LAH3-3 10, 30, 60 Seconds Range

Regular price
Sold out
Sale price
$4.00

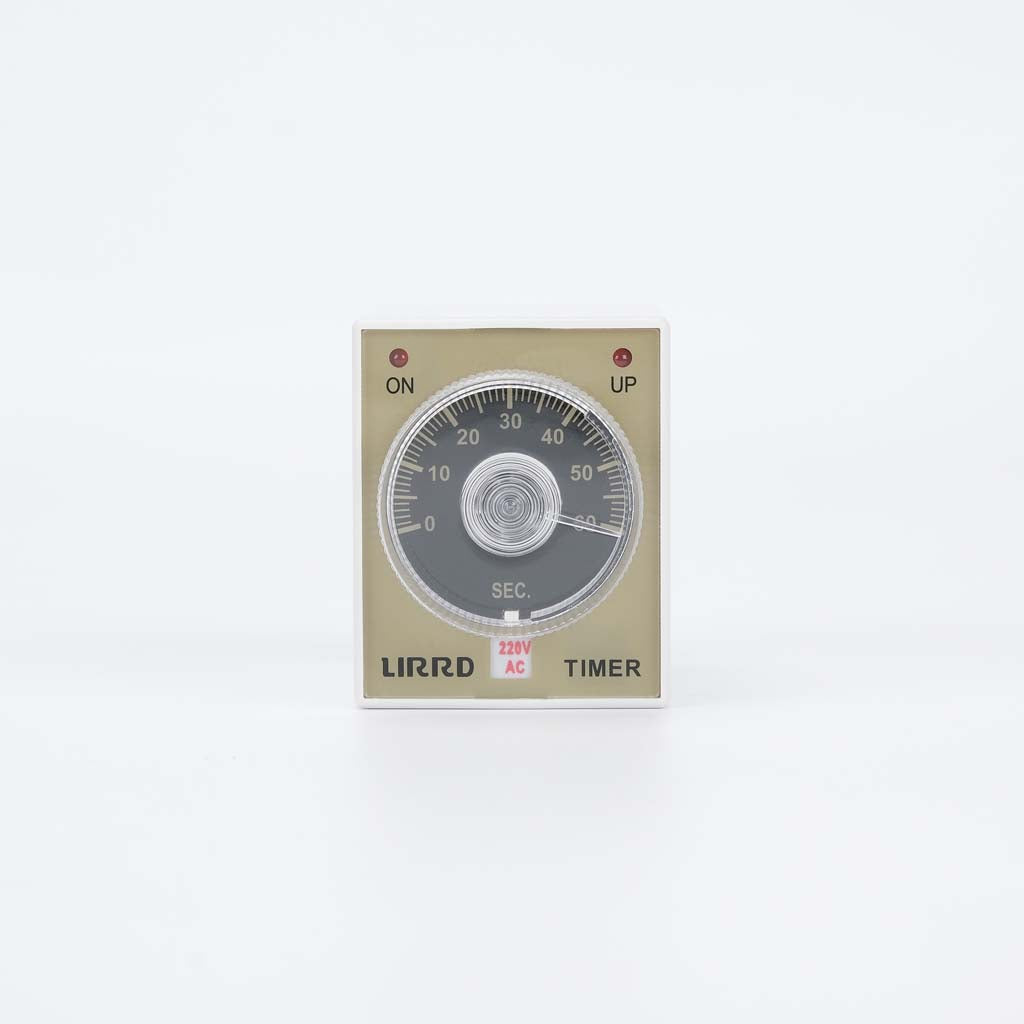

Front_View-LAH3Relay Application

Classification Time Relay
Model LAH3
Dimension(mm) 50.0H * 40.5W * 82.0L
Full Timing Range SEC:1, 3, 6, 10, 12, 30, 60
MIN:3, 6, 10, 12, 30, 60
HR:3, 6, 10, 12
Rated Voltage AC:12V- 24V- 110/220V- 380V
DC: 12V- 24V
Indicator Operating ON, UP Operating
Contact Model LAH3-1 LAH3-2 LAH3-3
1C Time Limit 5A   5A
2C Time Limit   5A
1C Instantaneous     5A
Service Life Mechanical 5*106 times
Electrical 105 times
Accuracy Repeat Error ±1% max.
Setting Error ±10% max
Voltage Error ± 1% max.
Temp Error ± 2% max.
Reset Time 0.1sec max.
Power Consumpting 2.5VA
Ambient Temperature -10~+55 °C
Ambient Humidity 48~85%RH
Weight 160g

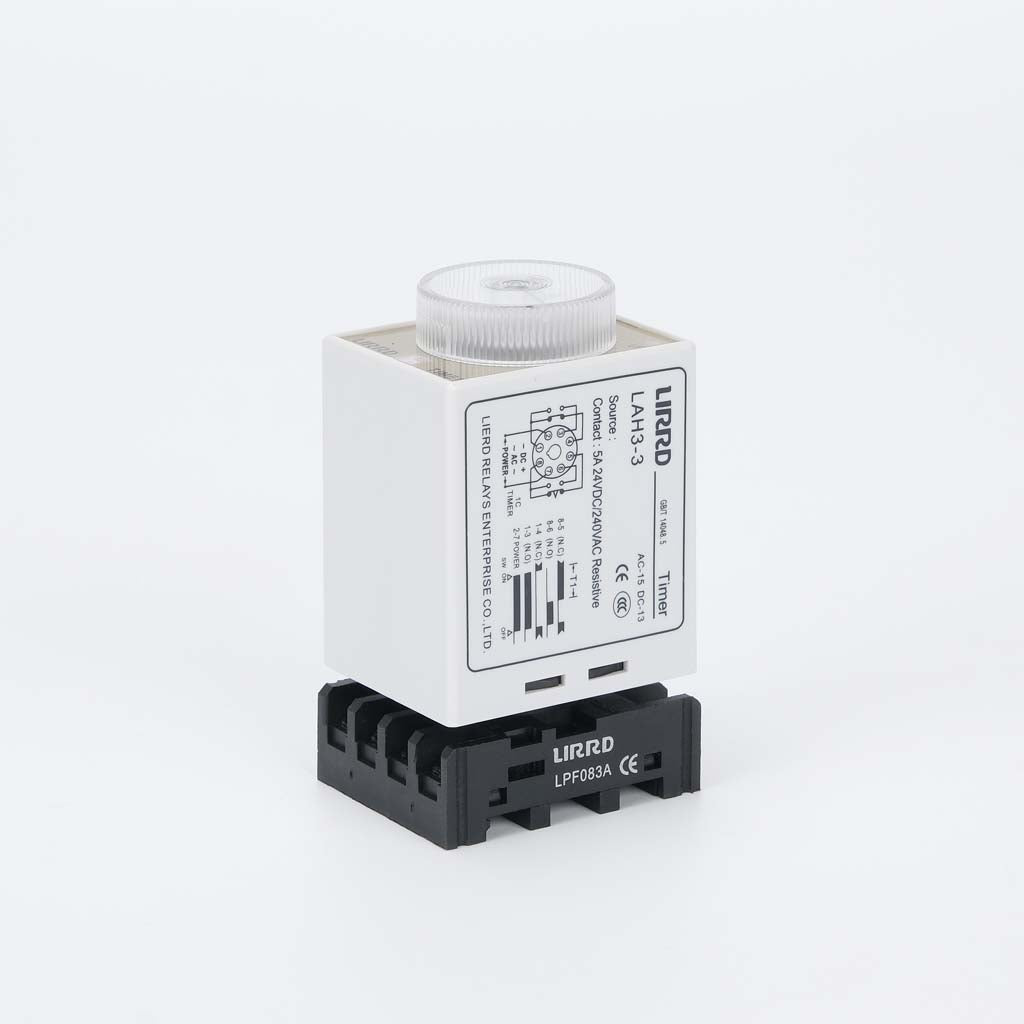

Mounting&Socket Surface PF083A 8PFA US-08  PSG-08
Flush Y-40 & US-08 or Y-40 & P3G-08

LAH3_Installation_Dimensions_and_Connection_Diagram
