230v Toaster Oven Mini  TB37 Mechanical Timer Switch
230v Toaster Oven Mini  TB37 Mechanical Timer Switch
230v Toaster Oven Mini  TB37 Mechanical Timer Switch
230v Toaster Oven Mini  TB37 Mechanical Timer Switch

230v Toaster Oven Mini TB37 Mechanical Timer Switch

Regular price
Sold out
Sale price
$6.68

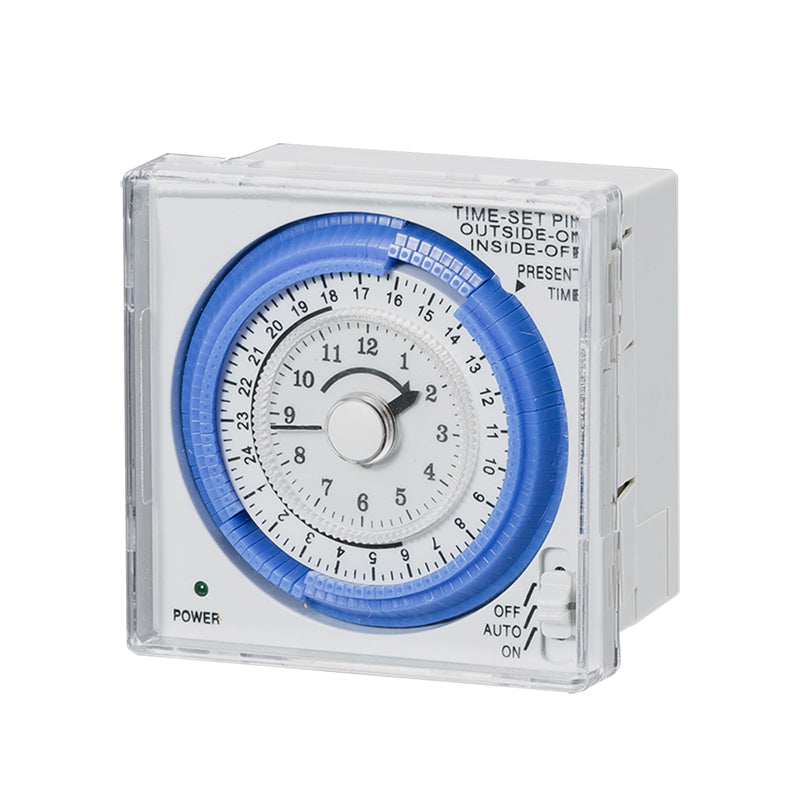

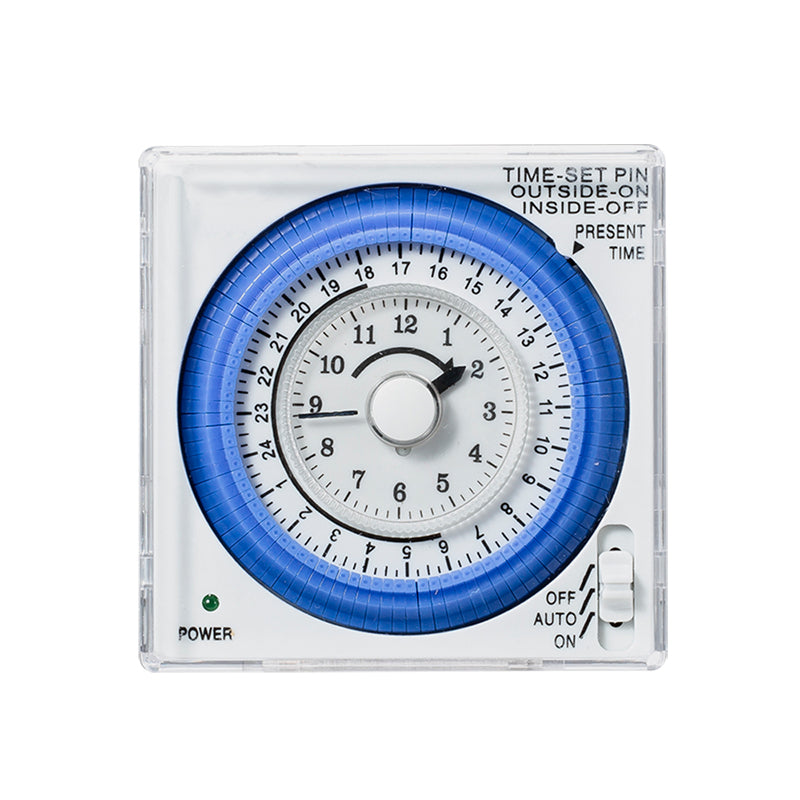

Front View-LTB37

Time Switch Application Scene

Type LTB37
Working Voltage 100,110,115,120,127VAC 220,230,240VAC
Resistance Load Switch Capacity 30A 15A
Power Consumption <1W <2W
Voltage Range 85~110%
Power Source Frequency 50/60HZ
Battery Model No Battery
Control Electrical Life 100000 Times
Mechanical Life 10000000 Times
Action Number 96 Operations
Timing Control Range 24 hours
Average Error <±2s/24h,20℃
Minimum Setting Unit 15 minutes/Unit
Minimum Setting Interval 15 minutes
Temperature -20℃~ +60℃
Relative Humidity <90%
Weight 156g
Dimensions 72*72*52 mm
Installation Screw Fixation & Panel
Shell Material PC Material, Proof Flame

Dimension-LTB37

Detail-LTB37

Structure-LTB37
