3 Phase Multifunctional Ammeter And Voltmeter
3 Phase Multifunctional Ammeter And Voltmeter
3 Phase Multifunctional Ammeter And Voltmeter
3 Phase Multifunctional Ammeter And Voltmeter
3 Phase Multifunctional Ammeter And Voltmeter
3 Phase Multifunctional Ammeter And Voltmeter

3 Phase Multifunctional Ammeter And Voltmeter

Regular price
$23.16
Sale price
$23.16

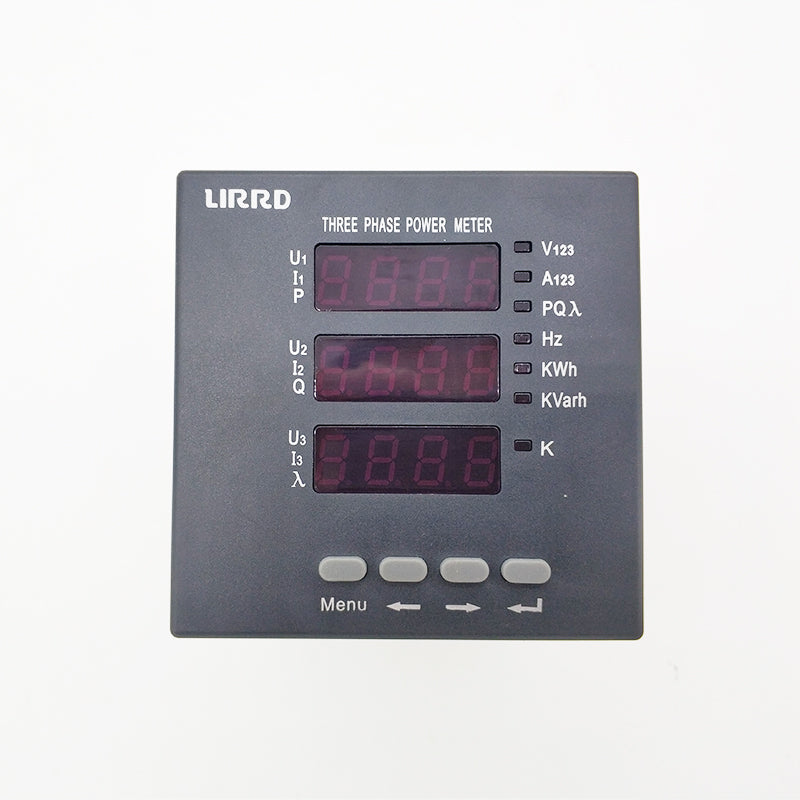

Front_Main-LDP224M-3S3-B

Input
Measurment
Display
Network Three-phase three-wire, Three-phase four-wire
Voltage Rating AC100V,400V(Please specify when ordering)
Overload Continuous: 1.2 times instantaneous: 2 times
Power consumption <1VA(each phase)
Resistance ≥500kΩ
Precision RMS measurement,Accuracy level 0.2/0.5
Current Rating AC1A,5A(Please specify when ordering)
Overload Continuous: 1.2 times instantaneous: 2 times
Power consumption <0.4VA(each phase)
Resistance <2mΩ
Precision RMS measurement,Accuracy level 0.2/0.5
Frequency 40~60Hz,accuracy 0.1Hz
Power Active, reactive, accuracy 0.2/0.5
Electric Energy Energy metering,Active accuracy 0.2/0.5,Inactive accuracy 1.0
Display Programmable, switching, loop (LCD/LED) display
Power Working Scale AC220V or AC/DC85~265V(optional)
Consumption ≤5VA
Output Communication Interface Rs485
Pulse output 2-way energy pulse output, optocoupler isolation
Ambient Ambient 10~55℃
Storage environment -20~70℃
Safety Withstand voltage Input/Power>2kV Power/Output>1kV
Insulation Input,Output,Power on the machine>50MΩ
Dimension 96mm*96mm*85mm

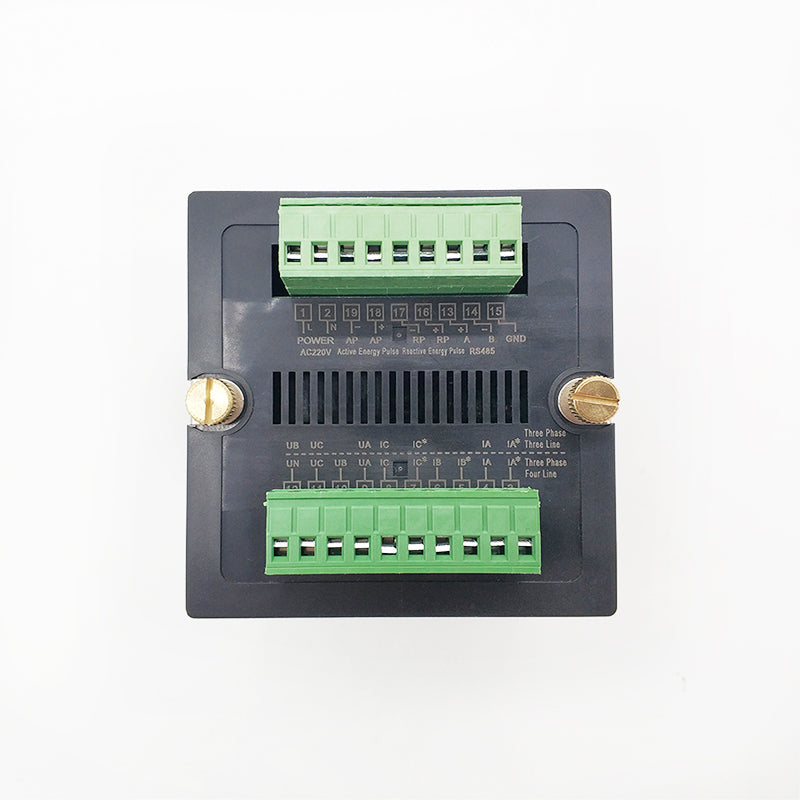

Terminal Arrangement And Wiring-LDP224M-3S3-B

Shape And Size-LDP224M-3S3-B
