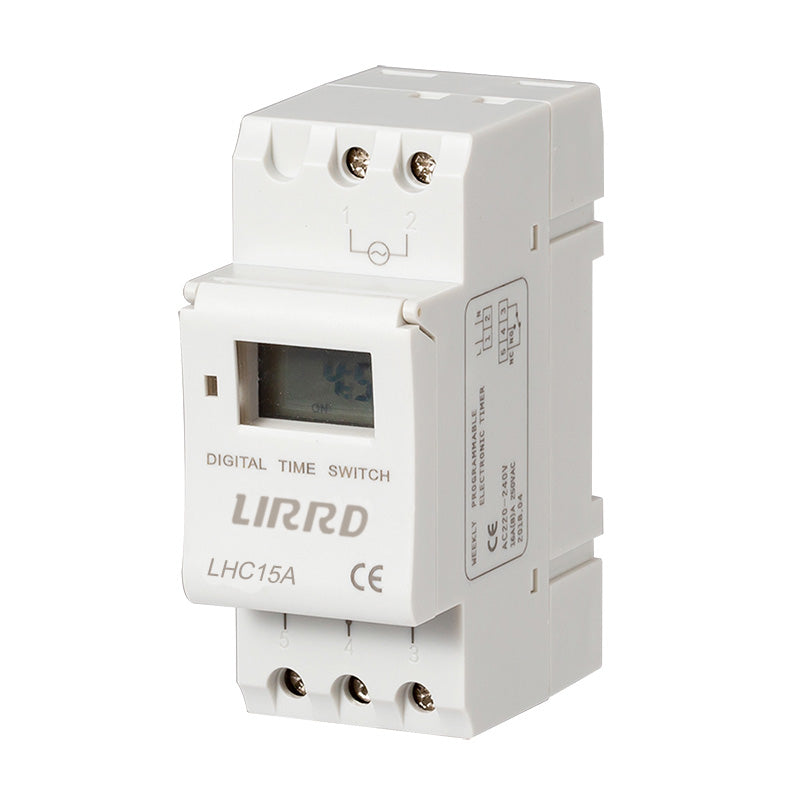

Type |
LHC15A |
Working Voltage |
100,110,115,120,127VAC |
220,230,240VAC |
12,24,36VDC |
Resistance Load Switch Capacity |
25A |
16A |
25A |
Power Consumption |
<1W |
<2W |
<1W |
Voltage Range |
85~110% |
Power Source Frequency |
50/60HZ |
Power Reserve Time |
5 Years |
Control Electrical Life |
100000 Times |
Mechanical Life |
10000000 Times |
Display |
LCD |
Setting Switch |
16 Times Open And 16 Times Off |
Timing Control Range |
1 min- 168 hours |
Average Error |
<±0.5s/24h,25℃ |
Mini Interval |
1 min |
Temperature |
-25℃~ +60℃ |
Relative Humidity |
<95% |
Weight |
115g |
Dimensions |
87*36*65mm |
Installation |
Din Rail 35mm & Panel |
Shell Material |
PC Material, Proof Flame |
