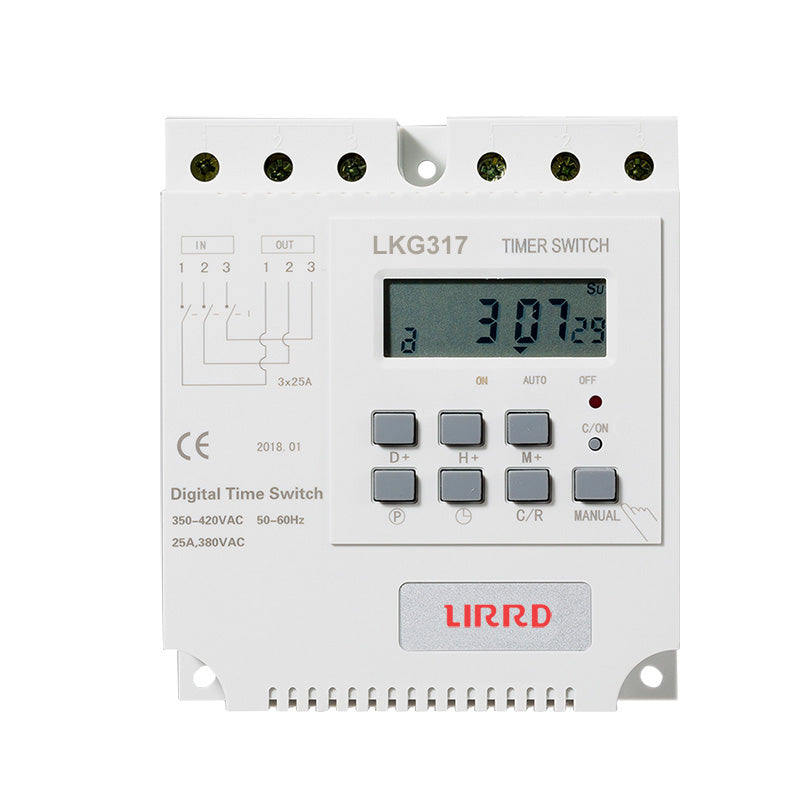

Front View-LKG317

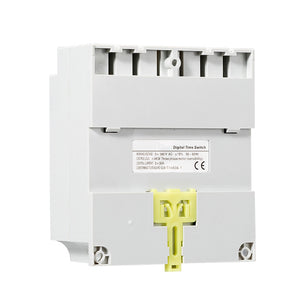

Back View-LKG317

Battery Charger AC 380V 3 Phase Timer Switch

Regular price
Sold out
Sale price
$14.80

Front View-LKG317Time Switch Application Scene

Type LKG317
Working Voltage Three Phase200,220,240VAC Three Phase380,400,415VAC
Resistance Load Switch Capacity 25A 16A
Power Consumption <3W <4W
Power Range 85~110%
Power Source Frequency 50/60HZ
Power Reserve Time 5 Years
Control Electrical Life 100000 Times
Mechanical Life 10000000 Times
Display LCD
Setting Switch 16 Times Open And 16 Times Off
Consumed Power <4W
Timing Control Range 1 min- 168 hours
Average Error 0.5s/24h,25℃
Mini Interval 1 min
Storage time 160days
Temperature -20℃~ +60℃
Relative Humidity <95%
Weight 425g
Dimensions 120*105*52 mm
Installation Guide Rail & Wall Mounting & Panel
Shell Material PC Material, Proof Flame
Dimension-LKG317Details-LKG317Structure-LKG317
