Time Relay LST3PA -B

Time Relay LST3PA -B

Regular price
Sold out
Sale price
$5.12

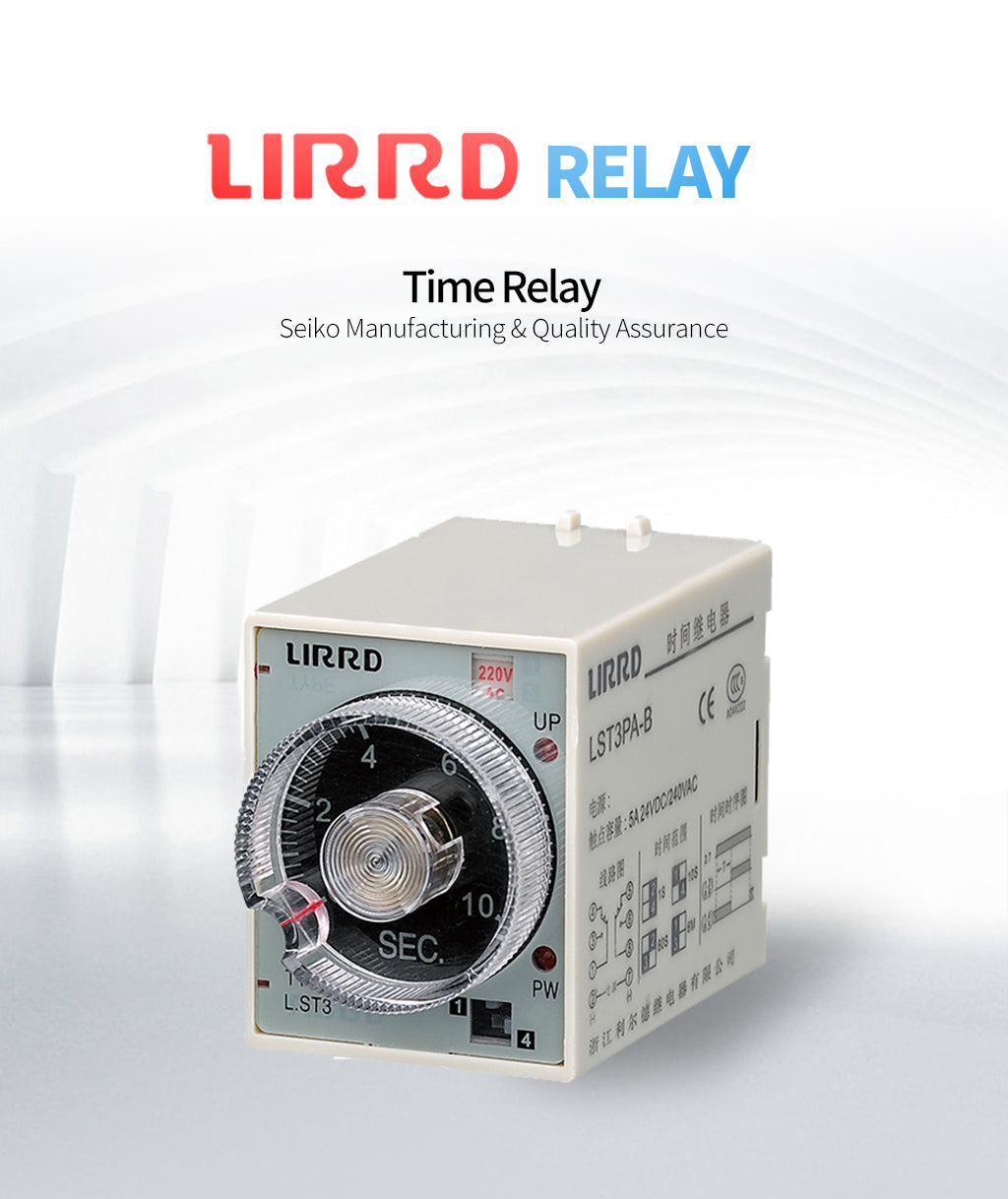

Front_View-LST3PA-B

Relay Application

Classification Multi Range Time Relay
Model LST3PA LST3PC LST3PG
Dimension(mm) 55.0H * 40.5W * 84.0L
Full Timing Range A: 0.05- 0.5s/ 5s/ 30s/ 3min    E: 5- 60s/ 10min/ 60min/ 6h
B: 0.1- 1s/ 10s / 60s/ 6min     F: 0.25- 2min/ 20min/ 2h/ 12h
C: 0.5- 5s/ 50s/ 5min/ 30min    G: 0.5- 5min/ 40min/ 4h/ 24h
D: 1- 10s/ 100s/ 10min/ 60min
Rated Voltage AC: 110V, 220V, 380V 50/60Hz
DC: 12V, 24V, 48V
Indicator Operating ON, UP Two Indicator
O/P Contact 1C Time Limit   5A
2C Time Limit 5A(10A)   5A
1C Instantaneous   5A
Mechanical 5*107 times
Service Life Electrical 106 times
Repeat Error ±2% max.
Accuracy Setting Error ±5% max
Voltage Error ± 5% max.
Temp Error ± 2% max.
Reset Time 0.1sec max.
Power Consumpting 3VA
Ambient Temperature -10~+50 °C
Ambient Humidity 35~85%RH
Weight 100g
Mounting&Socket Surface PF083A 8PFA
Flush Y-40 & US-08 or Y-40 & P3G-08


Approved Standards

Agency Standard File No.
CCC(CQC) GB 14048.5-2008 2011010303498302

Installation Dimensions And Connecting,Sequence Diagram-Time Relay
