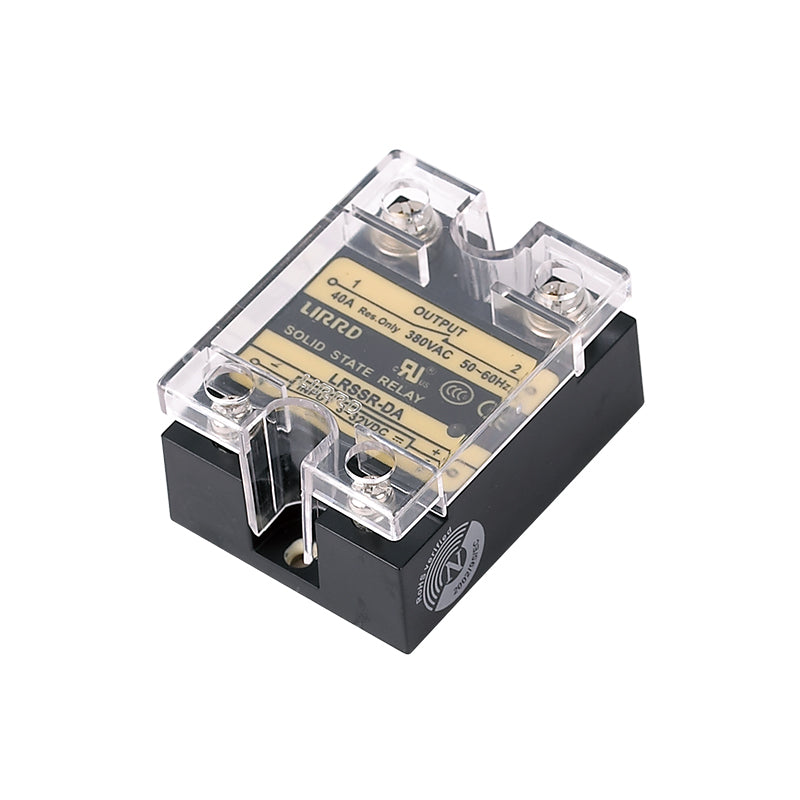

DC to AC Solid State Relay
DC to AC Solid State Relay
DC to AC Solid State Relay
DC to AC Solid State Relay
DC to AC Solid State Relay

DC to AC Solid State Relay

Regular price
$5.80
Sale price
$5.80

SSR Application

Classification AC Solid State Series DC Solid State Series LRSSVR
Model LRSSR-AA LRSSR-DA LRSSR-DD LRSSRVR
Load Voltage(V) 28~285, 36~530 28~285, 36~530, 48~660 50, 100, 300, 400 50, 600 700, 800, 900 40~250, 80~380
Load Current(A) 5, 10, 20, 30, 40,
 50, 60, 80, 100
5, 10, 20, 30, 40, 50, 60, 80, 100 5, 10, 20,
 30, 40
5, 10, 20 5, 10, 20,
30, 40
Dielectric Strength(Vac) 2500
Insulation Resistance(MΩ) 100
Control Voltage(Vdc) 90-265 3-32 3-32
Control Current(mA) ≤10 3-35 5-20
On Voltage Drop(V) ≤10 ≤1.5 ≤2.5
Off Leakage Current(mA) ≤4 ≤2 ≤1
Frequency Range(Hz) 47~63
on-off Time(ms) ≤10 ≤0.8
Action State Indication LED
Ambient Temperature -30℃~+75℃
Mounting Method Bolt Fixation
Same Reference SSR, G3NA-420B, LSAP3810A, LSAP2210A SSR, JGX-1572F, JGX-1554F, JGX-1598F, JG53FA, JGX-54FA
Directions Load Current Resistance above DC 5A Must Be Set Radiator


Approved Standards

Agency Standard File No.
CE EN 60947-1: 2004 T2M20511-0737
UL ANSI/UL 508 E256962
CCC(CQC) GB 14048.5-2008 2011010303498303

Connecting_Diagram-LRSSRDimension-LRSSRRadiator-LRSSR

Q/XWQHI007-2003 norm for general solid state relays stipulates product symbol for general solid state relays, include code of main names, input and output code, output voltage and current, output type. For example:

Symbol of Solid State Relays

Notice: The type code includes O, OL, 1 and 1L, respectively means zero crossing type, zero crossing suitable for inductive load, stochastic type, and stochastic type suitable for inductive load.
