![Front_View-LAH2](//cdn.shopify.com/s/files/1/0047/6764/5770/files/Front_View-LAH2-1024pixel.jpg?v=1568603000)
![Relay Application](//cdn.shopify.com/s/files/1/0047/6764/5770/files/SSR_Application_1024x1024.jpg?v=1551160297)
Classification |
Time Relay |
Model |

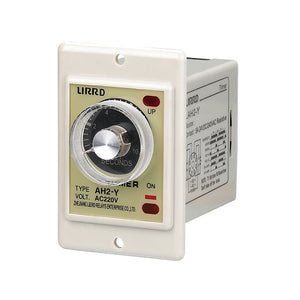

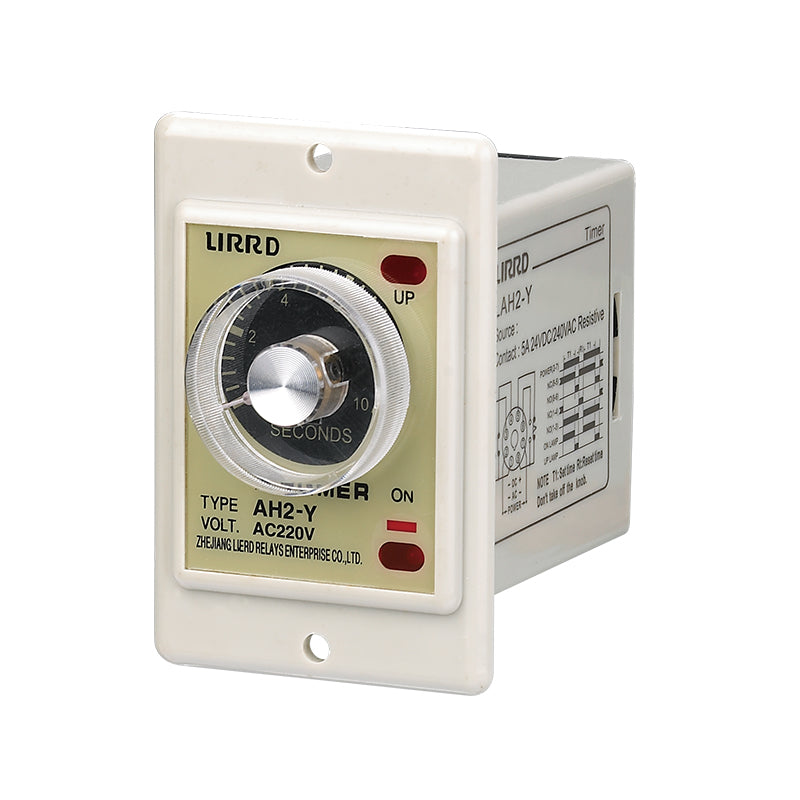

LAH2-N |
LAH2-Y |
Dimension(mm) |
28.0H * 21.5W * 63.0L |
88.0H * 58.0W * 82.0L |
Full Timing Range |
SEC:1, 3, 6, 10, 12, 30, 60 |
MIN:3, 6, 10, 30, 60 |
HR:3, 6, 10, 24 |
Rated Voltage |
AC: 110, 220V, 380V, 415V, 440V 50/60Hz |
DC: 12V, 24V, 48V |
Indicator Operating |
ON, UP |
Contact |
Model |
AH2-N1/AH2-Y1 |
AH2-N2/AH2-Y2 |
AH2-N/AH2-Y |
1C Time Limit |
5A |
|
5A |
2C Time Limit |
|
5A |
|
1C Instantaneous |
|
|
5A |
Service Life |
Mechanical |
5*106 times |
Electrical |
105 times |
Accuracy |
Repeat Error |
|
±1% max. |
|
Setting Error |
±10% max |
Voltage Error |
± 1% max. |
Temp Error |
± 2% max. |
Reset Time |
0.1sec max. |
Power Consumpting |
3VA |
Ambient Temperature |
-10~+55 °C |
Ambient Humidity |
48~85%RH |
Weight |
220g |
Mounting&Socket |
Surface |
|
US-08 PSG-08 |
Flush |
8PFA |
![LAH2_Installation_Dimensions_and_Connection_Diagram](//cdn.shopify.com/s/files/1/0047/6764/5770/files/LAH2_Installation_Dimensions_and_Connection_Diagram_1024pixel.jpg?v=1568604228)
