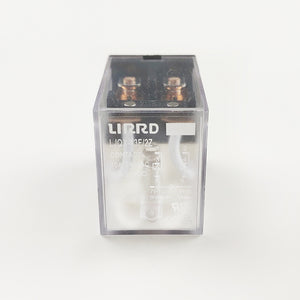

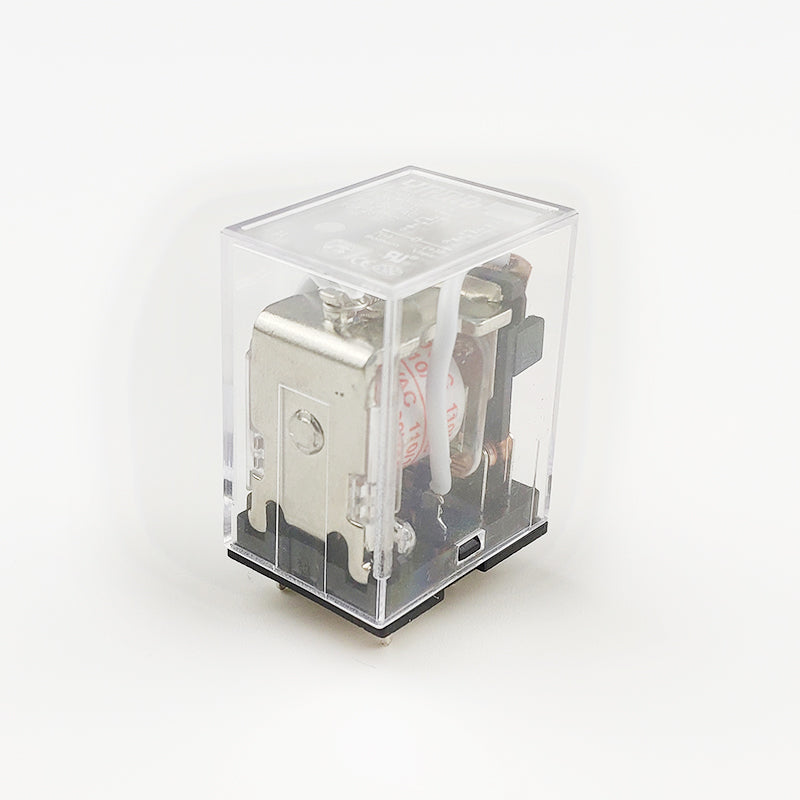

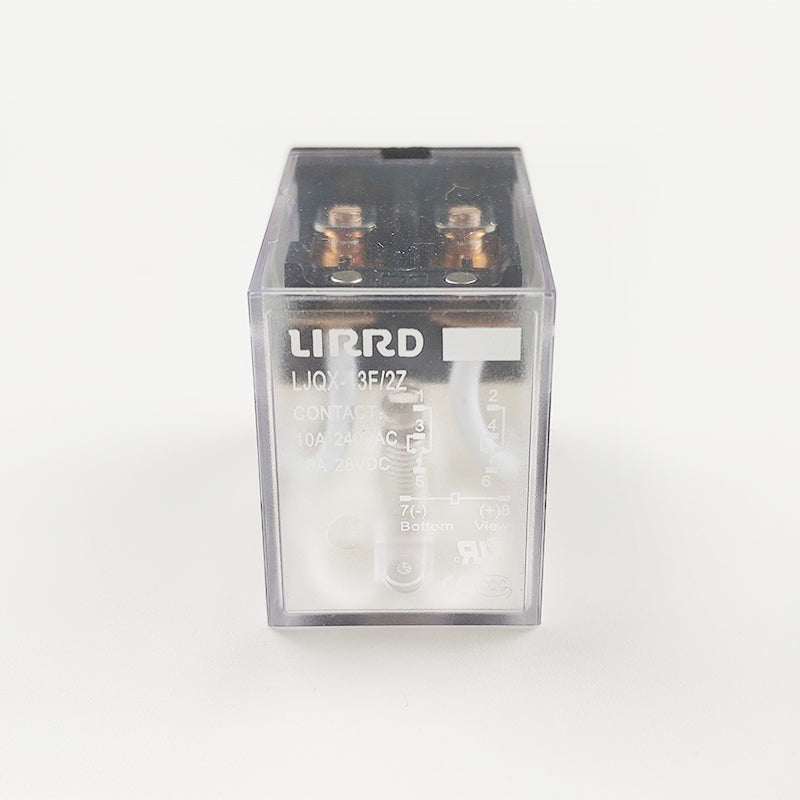

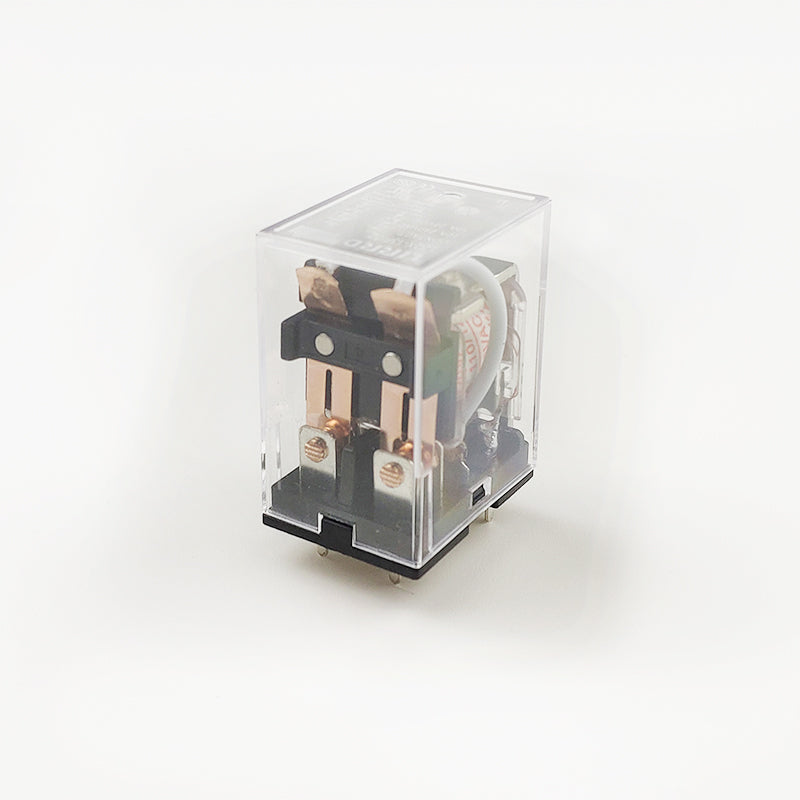

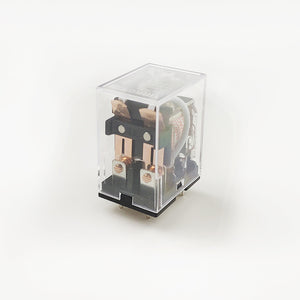

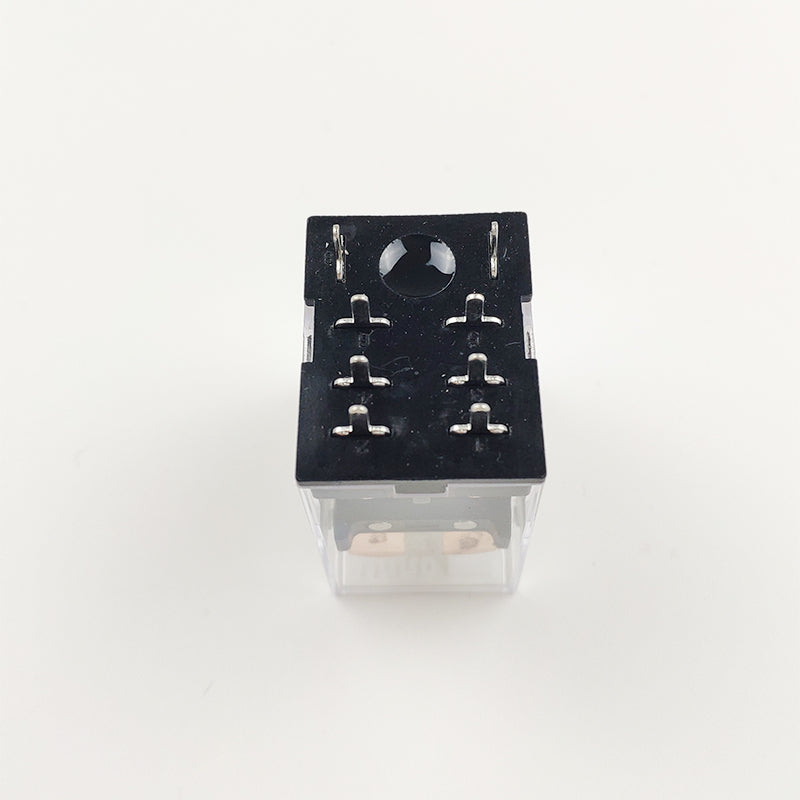

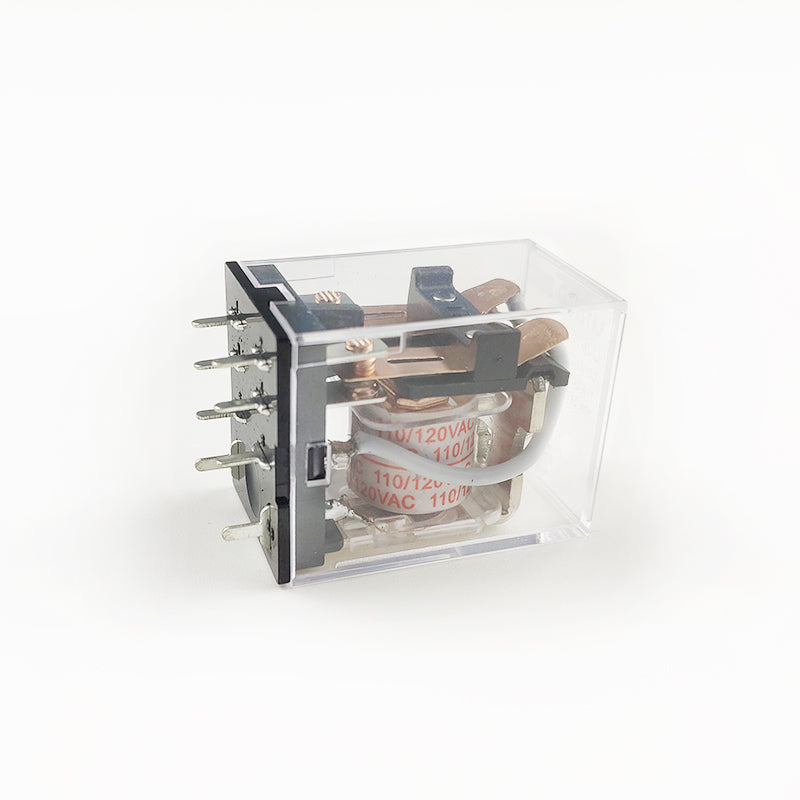

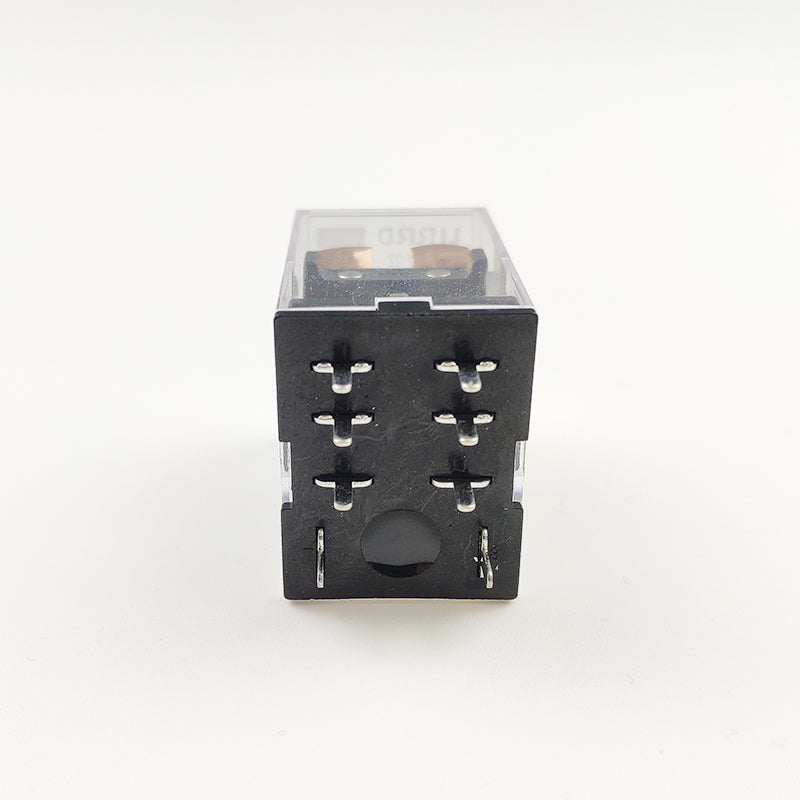

Double Poles JQX-13F/ LY2 General Purpose Relay With PCB Connections
Double Poles JQX-13F/ LY2 General Purpose Relay With PCB Connections
Double Poles JQX-13F/ LY2 General Purpose Relay With PCB Connections
Double Poles JQX-13F/ LY2 General Purpose Relay With PCB Connections
Double Poles JQX-13F/ LY2 General Purpose Relay With PCB Connections
Double Poles JQX-13F/ LY2 General Purpose Relay With PCB Connections

Double Poles JQX-13F/ LY2 General Purpose Relay With PCB Connections

Regular price
Sold out
Sale price
$2.00

Relay ApplicationLJQX-13F Series

Model LJQX-13F-2Z LJQX-13F-3Z LJQX-13F-4Z
Dimention(mm) 27.3*21*35.2 30.8*27.3*35.2 41*27.3*35.2
Contact Form 2Z 2H 2D 3Z 3H 3D 4Z 4H 4D
Contact Material Silver Alloy
Resistance Performance Of Contactor Capacity 10A/28VDC 10A/240VAC
Coil Power at 23°C DC(W) 1Z 2Z≤0.9W, 3Z≤1.5W, 4Z≤1.6W
AC(VA) 1Z 2Z≤1.2VA, 3Z≤2VA, 4Z≤2.5VA
Coil Voltage DC(V) 6~220V
AC(V) 6~380V
Pick-up Voltage at 23°C  DC≤75%  AC≤80%
Drop-out Voltage at 23°C   DC≥10%  AC≥30%
Max Voltage at 23°C 110%
Contact Resistance(at 6VDC 1A) ≤100mΩ
Dielectric Strength Between Open Contacts ≥1200VAC 50Hz/1min Leakage Current 1mA
Contacts Pieces ≥1500VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts ≥1500VAC 50Hz/1min Leakage Current 1mA
Insulation Resistance(MΩ) at 500VDC ≥500MΩ
Service Life Electrical 100,000 Times(Frequency:On 1 Time/1S,Off Time/1S)
Mechanical 1,000,000 Times(Frequency:300 Times/1min)
Ambient Temperature -25°C ~ +55°C
Teminal Type Insert Type, Welding Type
Suitable Socket LPTF08A LPTF11A LPTF14A
Product Weight 40g 50g 60g
Same Reference HH62P, LY2 HH63P, LY3 HH64P, LY4


Approved Standards

Agency Standard File No.
CE EN 60947-1: 2004 T2M20511-0737-E-16
CCC(CQC) GB15092.1-2010; GB8898-2011 CQC05001013257
UL ANSI/UL 508 E256962

LJQX-13F Series Installation Dimension and Connecting Diagram
