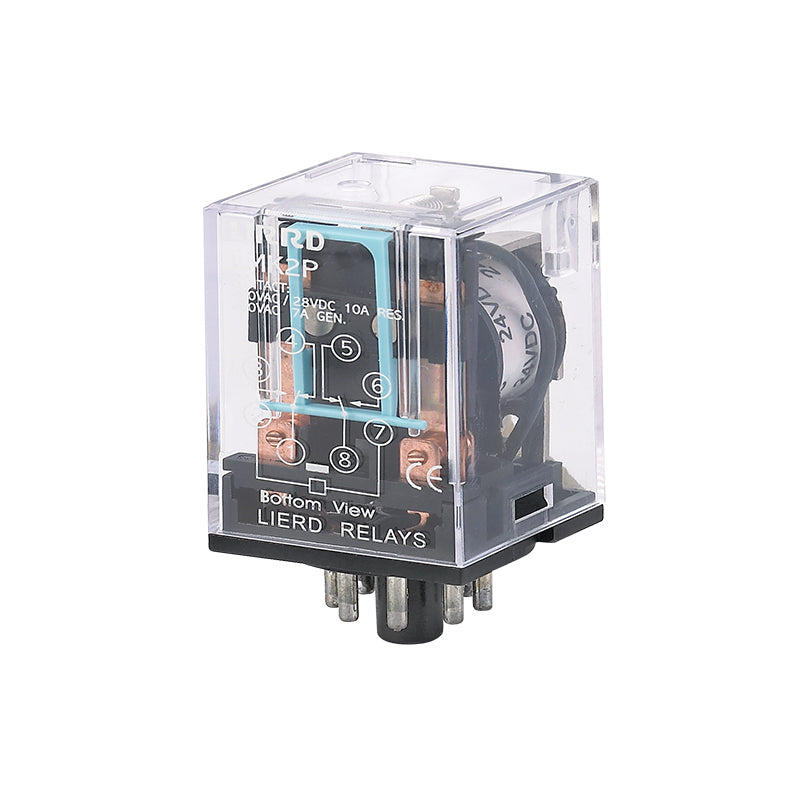

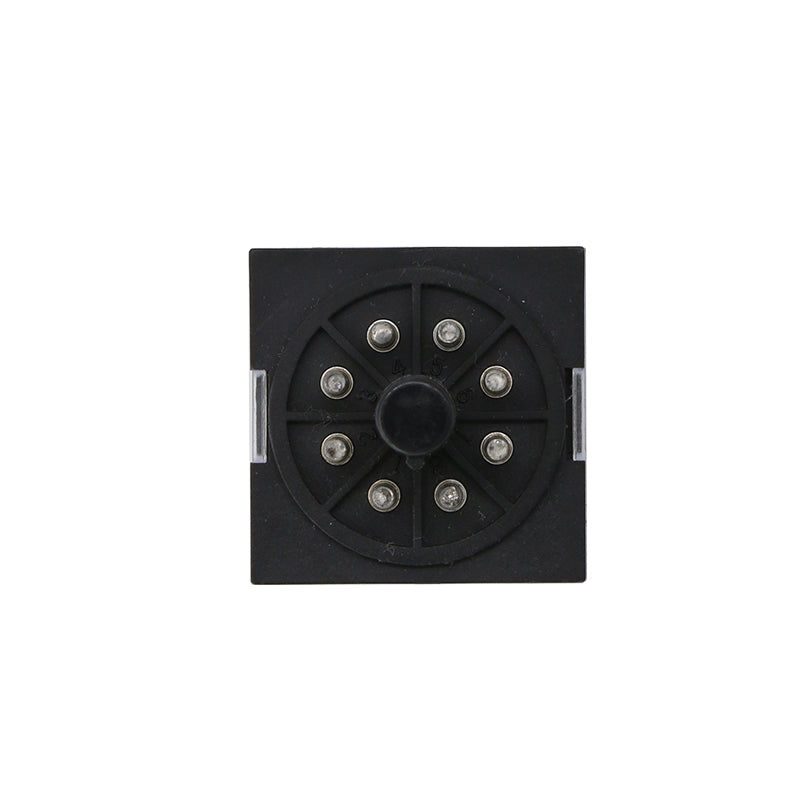

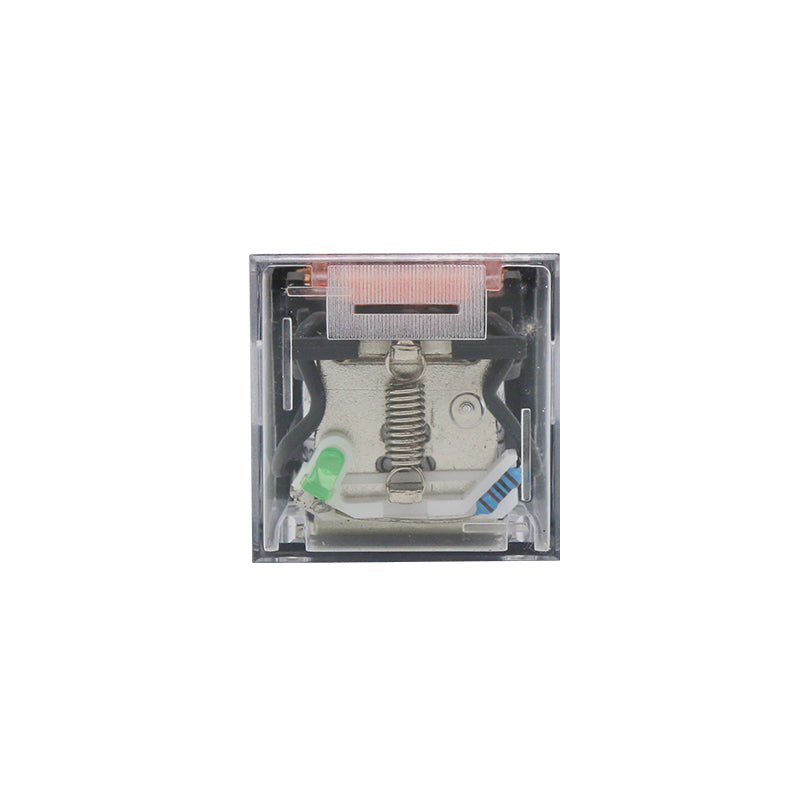

Electromagnetic Relay LMK-2P
Electromagnetic Relay LMK-2P
Electromagnetic Relay LMK-2P
Electromagnetic Relay LMK-2P
Electromagnetic Relay LMK-2P
Electromagnetic Relay LMK-2P

Electromagnetic Relay LMK-2P

Regular price
$2.75
Sale price
$2.75

Front_Main-LMK2PRelay ApplicationLMK Series

Model LMK-2P LMK-3P
Dimention(mm) 34.5*34.5*52.5
Contact Form 2Z 2H 2D
Contact Material Silver Alloy
Resistance Performance Of Contactor Capacity 10A/28VDC, 10A/250VAC
Coil Power at 23°C DC(W) ≤1.5W
AC(VA) ≤2.5VA
Coil Voltage DC(V) 6~220V
AC(V) 6~380V
Pick-up Voltage at 23°C  DC≤75%  AC≤80%
Drop-out Voltage at 23°C   DC≥10%  AC≥30%
Max Voltage at 23°C 110%
Contact Resistance(at 6VDC 1A) ≤100mΩ
Dielectric Strength Between Open Contacts ≥1200VAC 50Hz/1min Leakage Current 1mA
Contacts Pieces ≥1500VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts ≥1500VAC 50Hz/1min Leakage Current 1mA
Insulation Resistance(MΩ) at 500VDC ≥100MΩ
Service Life Electrical 10^5 Times(Frequency:On 1 Time/1S,Off 1 Time/1S)
Mechanical 10^6 Times(Frequency:300 Times/1min)
Ambient Temperature -25°C ~ +55°C
Teminal Type Insert Type
Suitable Socket LPF083A LPF083A-E LPL08 LPF113A LPF113A-E LPL11
Product Weight 76g 80g
Same Reference JTX Universal


Approved Standards

Agency Standard File No.
CE EN 60947-1: 2004 T2M20511-0737-E-16

LMK Series Installation Dimension and Connecting Diagram
