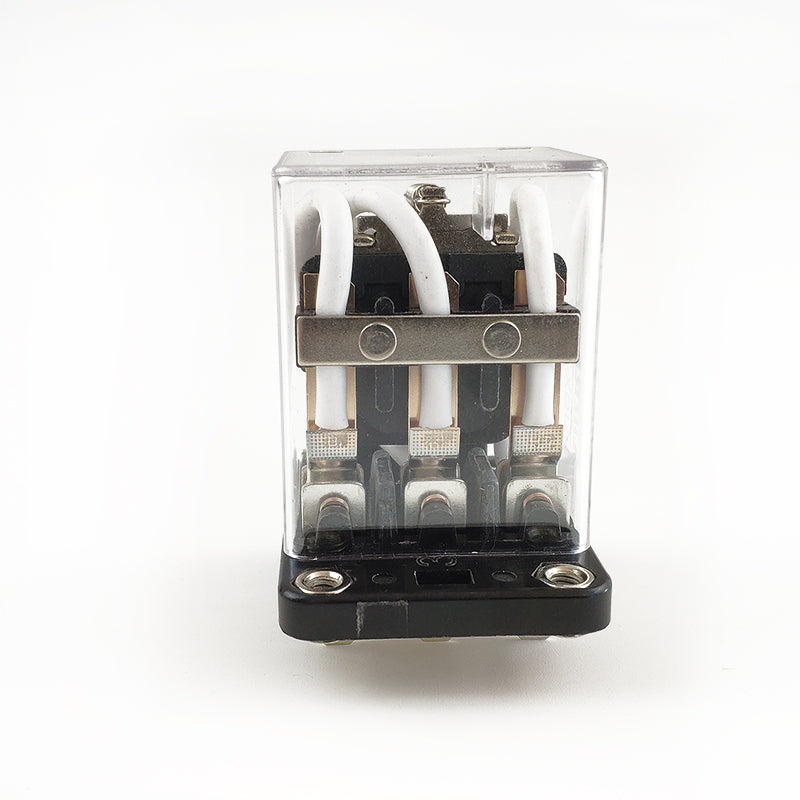

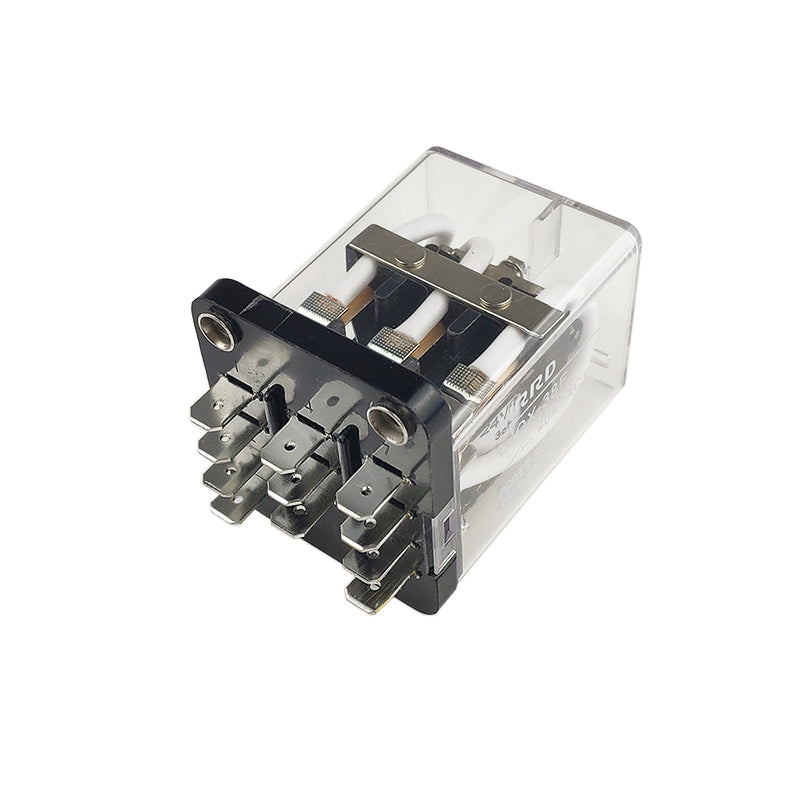

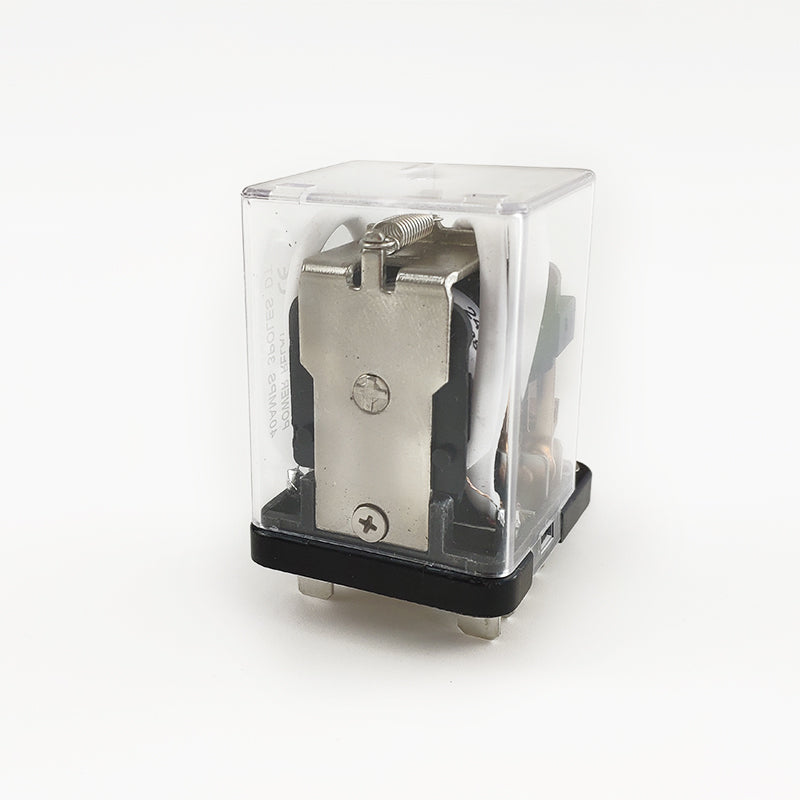

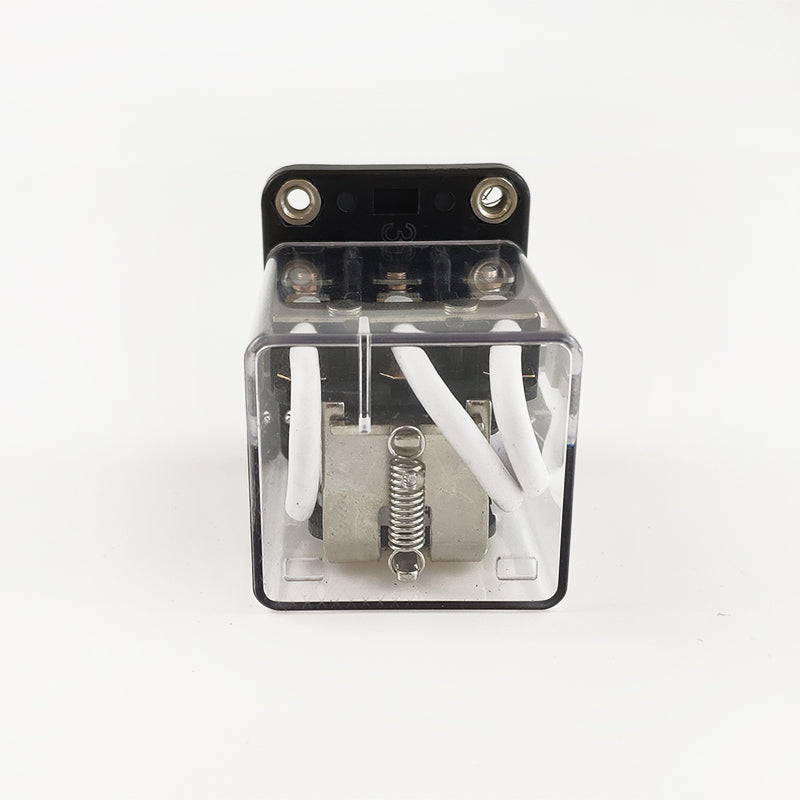

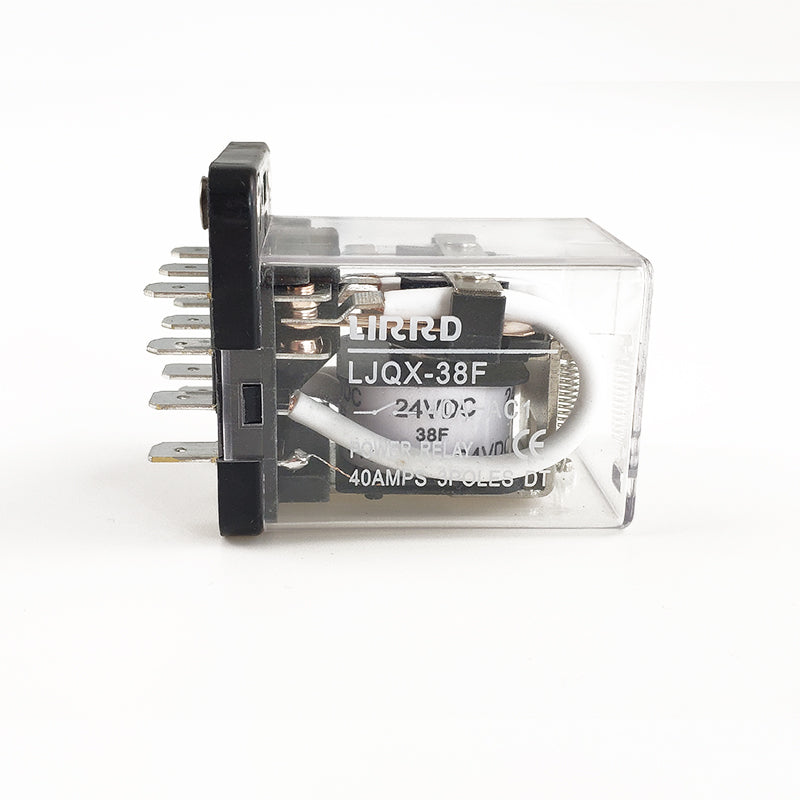

High Power Relay LJQX-38F
High Power Relay LJQX-38F
High Power Relay LJQX-38F
High Power Relay LJQX-38F
High Power Relay LJQX-38F
High Power Relay LJQX-38F

High Power Relay LJQX-38F

Regular price
$5.12
Sale price
$5.12

 Front_Main-LJQX-38F

Application

LJQX-38F_LJQX-38F_T

Model LJQX-38F LJQX-38F/T
Dimention(mm) 55.7*41.5*49.1 67.6*37.4*57.3
Contact Form 3Z 3H 3D
Contact Material Silver Alloy
Resistance Performance Of Contactor Capacity 30A/40A/28VDC, 30A/40A/250VAC
Coil Power at 23°C DC(W) <1.5W
AC(VA) <2.5VA
Coil Voltage DC(V) 6~220V
AC(V) 6~380V
Pick-up Voltage at 23°C  DC≤75%  AC≤80%
Drop-out Voltage at 23°C   DC≥10%  AC≥30%
Max Voltage at 23°C 110%
Contact Resistance(at 6VDC 1A) ≤100mΩ
Dielectric Strength Between Open Contacts ≥1200VAC 50Hz/1min Leakage Current 1mA
Contacts Pieces ≥1500VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts ≥1500VAC 50Hz/1min Leakage Current 1mA
Insulation Resistance(MΩ) at 500VDC ≥1000MΩ
Service Life Electrical 105 Times(Frequency:On 1 Time/1S,Off 1 Time/1S)
Mechanical 106 Times(Frequency:300 Times/1min)
Ambient Temperature -25°C ~ +55°C

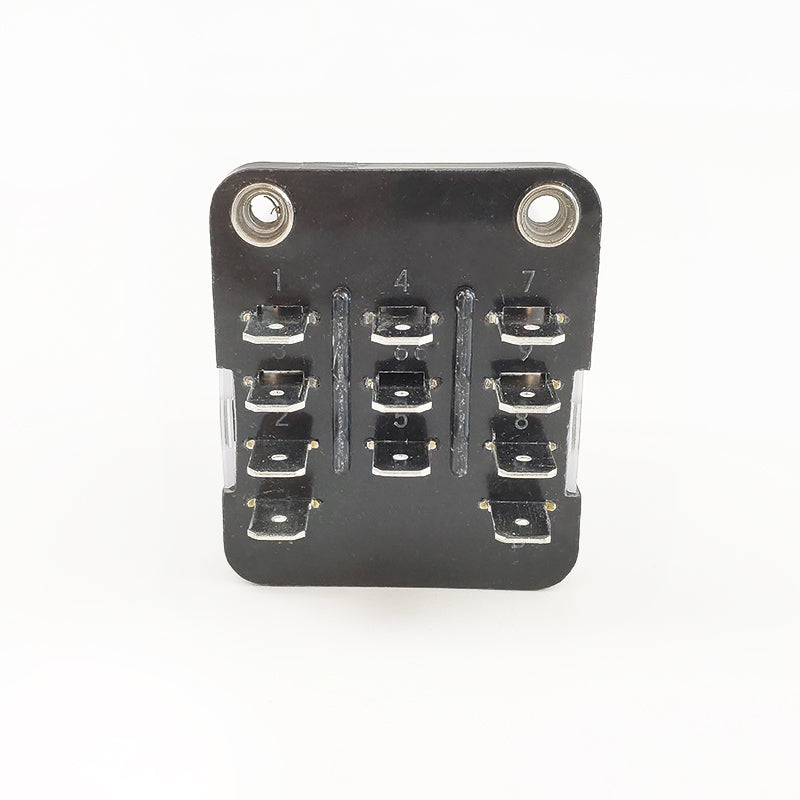

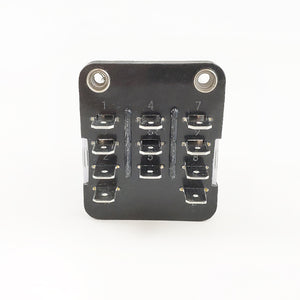

Teminal Type Insert Type Welding Type
Suitable Socket 38F11A
Product Weight 130g 135g
Same Reference



LJQX-38F Installation Dimensions and Connection Diagram
