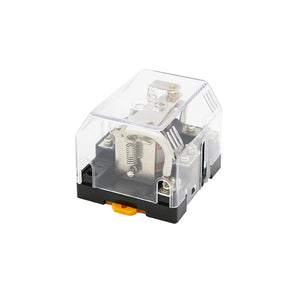

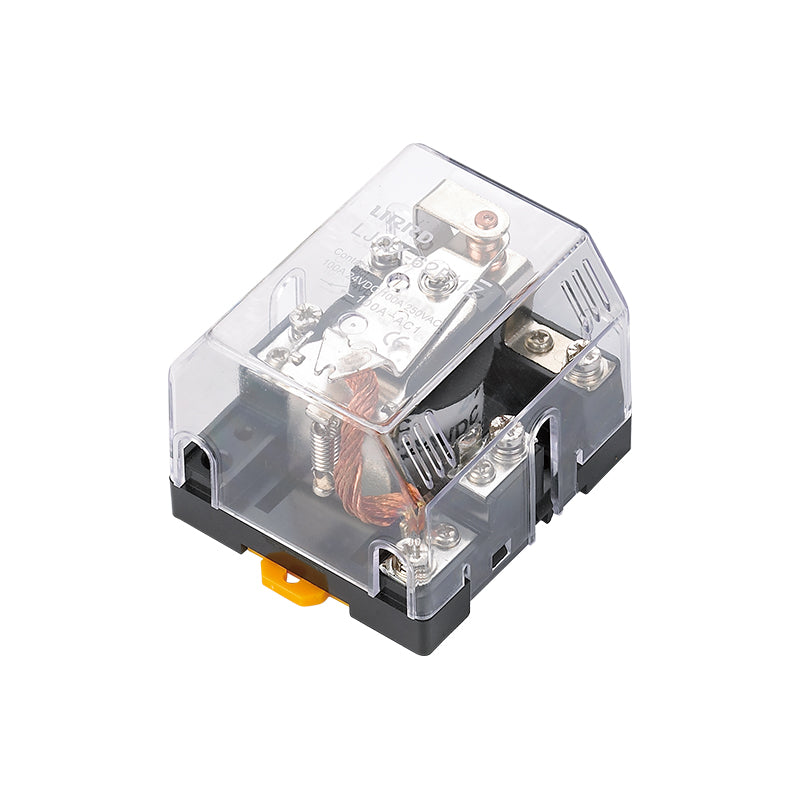

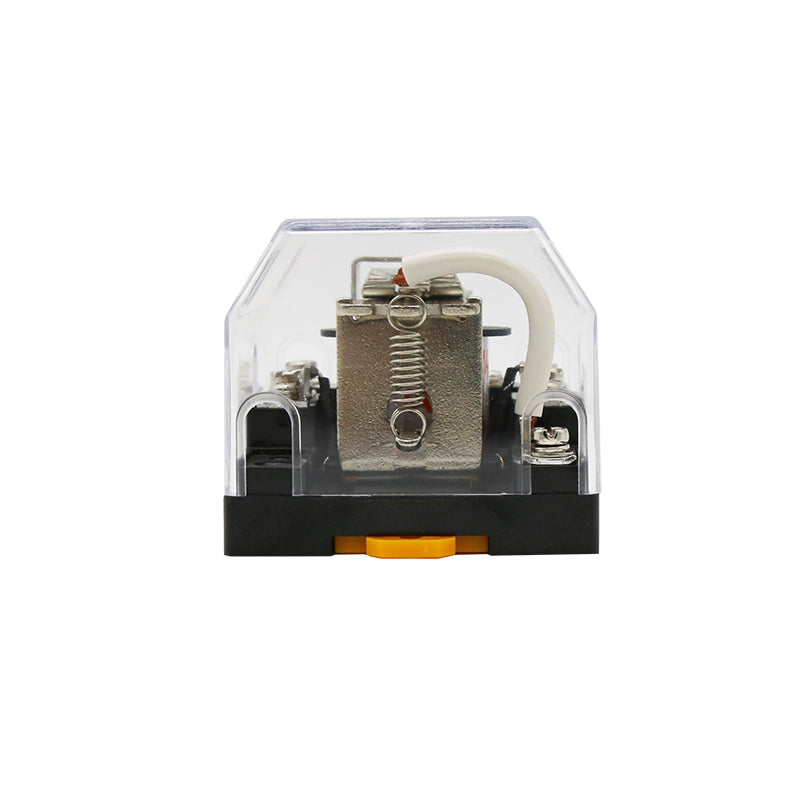

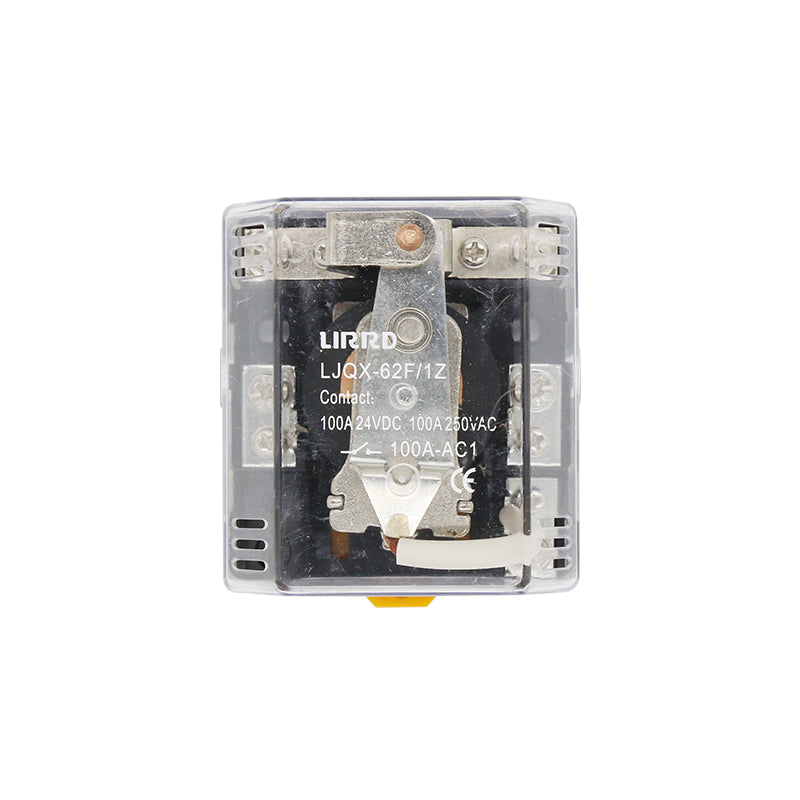

High Power Relay LJQX-62F/1Z
High Power Relay LJQX-62F/1Z
High Power Relay LJQX-62F/1Z
High Power Relay LJQX-62F/1Z
High Power Relay LJQX-62F/1Z
High Power Relay LJQX-62F/1Z

High Power Relay LJQX-62F/1Z

Regular price
$7.13
Sale price
$7.13

Front_Main-LJQX-62F 1ZApplication

LJQX-62F_Series

Model LJQX-62F-1Z LJQX-62F-2H LJQX-62F-2Z
Dimention(mm) 74*64*56.8 74*64*54.5 92.7*64*54.5
Contact Form 1Z 1H 1D 2H 2Z 2D
Contact Material Silver Alloy
Resistance Performance Of Contactor Capacity 100A/28VDC   100A/250VAC
Coil Power at 23°C DC(W) ≤3W
AC(VA) ≤10VA
Coil Voltage DC(V) 6~220V
AC(V) 6~380V
Pick-up Voltage at 23°C DC≤75%  AC≤80%
Drop-out Voltage at 23°C DC≥10%  AC≥30%
Max Voltage at 23°C 110%
Contact Resistance(at 6VDC 1A) ≤100mΩ
Dielectric Strength Between Open Contacts ≥1500VAC 50Hz/1min Leakage Current 1mA
Contacts Pieces ≥2500VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts ≥2500VAC 50Hz/1min Leakage Current 1mA
Insulation Resistance(MΩ) at 500VDC ≥1000MΩ
Service Life Electrical 105 Times(Frequency:On 1 Time/1S,Off Time/1S)
Mechanical 106 Times(Frequency:300 Times/1min)
Ambient Temperature -25°C ~ +55°C
Teminal Type Screw Mounting
Suitable Socket /
Product Weight 240g 245g 300g
Same Reference JQX-62F
Protection Type Close Type


Approved Standards

Agency Standard File No.
CE EN 60947-1: 2004 T2M20511-0737-E-16





LJQX-62F_Installation_Dimensions_and_Connection_Diagram
