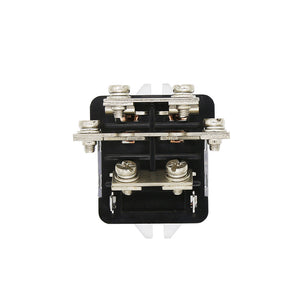

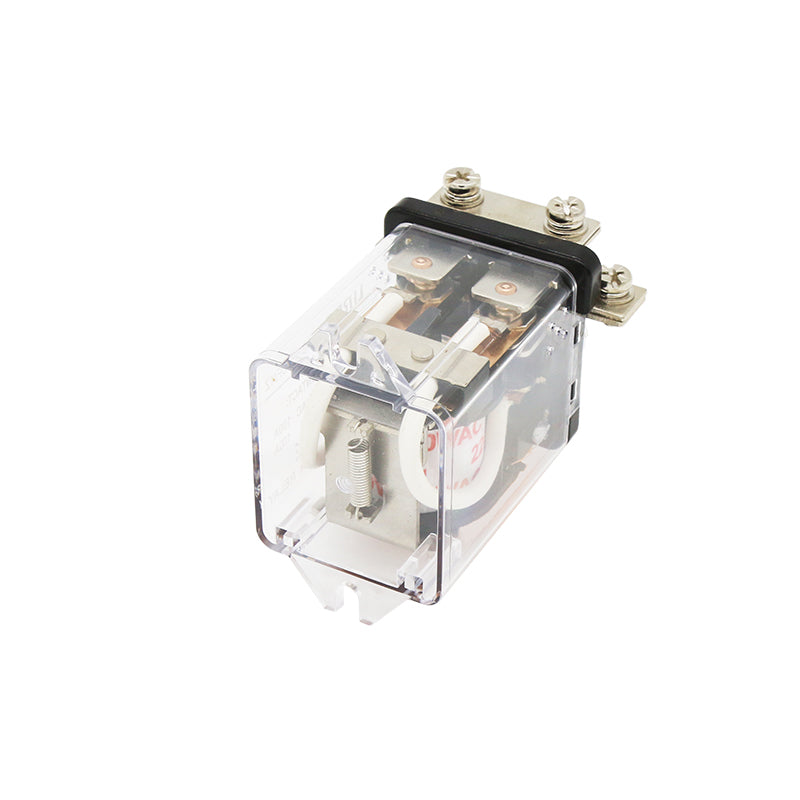

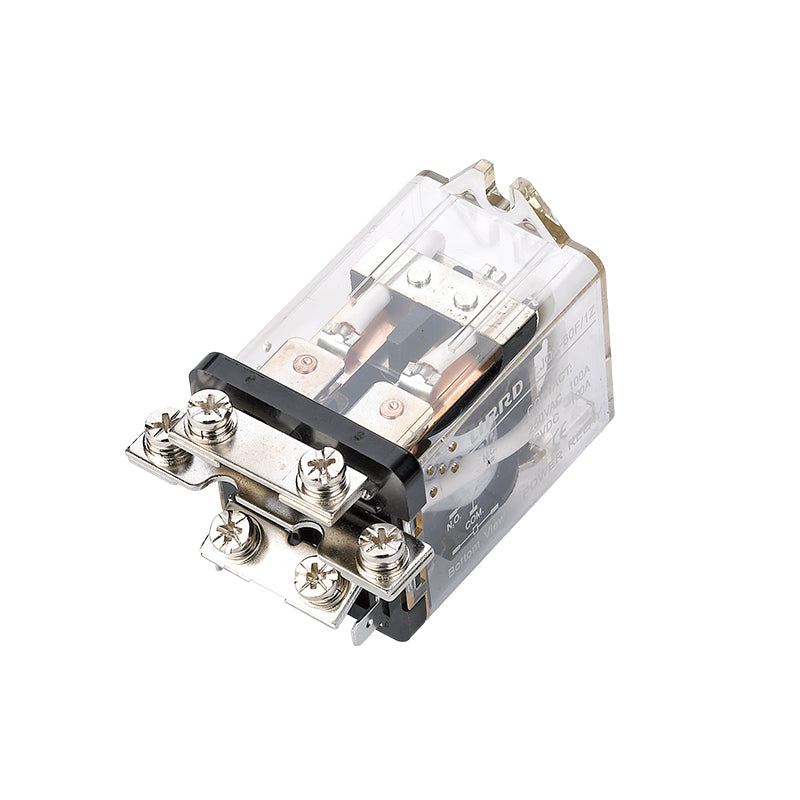

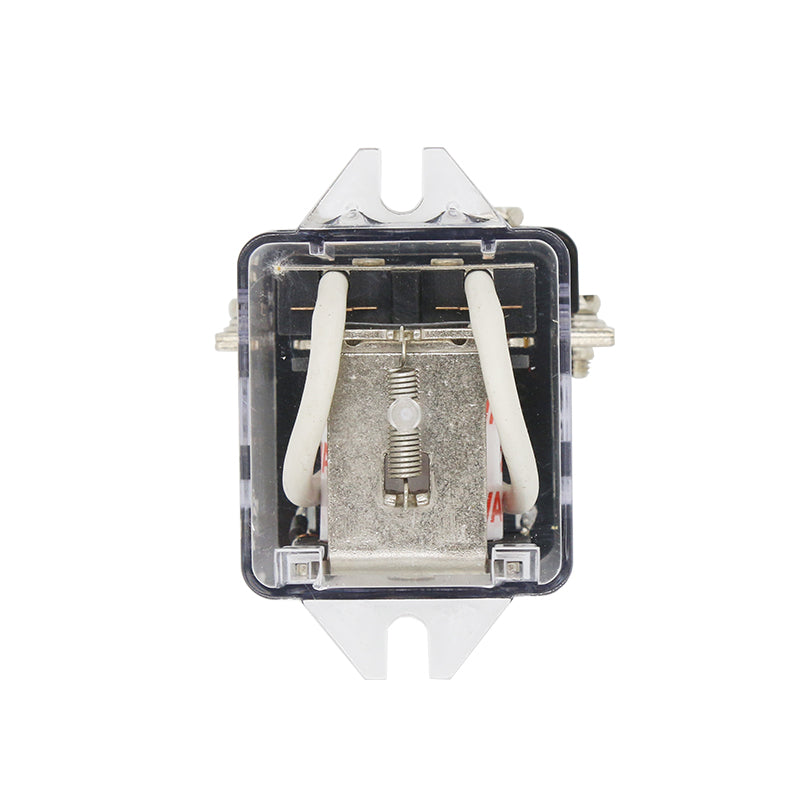

High Power Relay LJQX-80F/1Z
High Power Relay LJQX-80F/1Z
High Power Relay LJQX-80F/1Z
High Power Relay LJQX-80F/1Z
High Power Relay LJQX-80F/1Z

High Power Relay LJQX-80F/1Z

Regular price
Sold out
Sale price
$9.35

Front_Main-LJQX-80FApplicationLJQX-59F, LJQX-63F, LJQX-80F_Series

Model LJQX-59F LJQX-59FD LJQX-63F LJQX-80F
Dimention(mm) 80.5*45*71.5 80.5*62*71.5
Contact Form 1Z 1H 1D 2Z 2H 2D 1Z 1H 1D
Contact Material Silver Alloy
Resistance Performance Of Contactor Capacity 80A 120A 60A 100A
28VDC/250VAC
Coil Power at 23°C DC(W) ≤4.8W
AC(VA) ≤7.5VA
Coil Voltage DC(V) 6~220V
AC(V) 6~380V
Pick-up Voltage at 23°C DC≤75%  AC≤80%
Drop-out Voltage at 23°C DC≥10%  AC≥30%
Max Voltage at 23°C 110%
Contact Resistance(at 6VDC 1A) ≤100mΩ
Dielectric Strength Between Open Contacts ≥1500VAC 50Hz/1min Leakage Current 1mA
Contacts Pieces ≥2000VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts ≥2500VAC 50Hz/1min Leakage Current 1mA
Insulation Resistance(MΩ) at 500VDC ≥1000MΩ
Service Life Electrical 105 Times(Frequency:On 1 Time/1S,Off Time/1S)
Mechanical 106 Times(Frequency:300 Times/1min)
Ambient Temperature -25°C ~ +55°C
Teminal Type Screw Mounting
Suitable Socket /
Product Weight 235g 270g 230g 275g
Same Reference


Approved Standards

Agency Standard File No.
CE EN 60947-1: 2004 T2M20511-0737-E-16

LJQX-80F_Installation_Dimensions_and_Connection_Diagram
