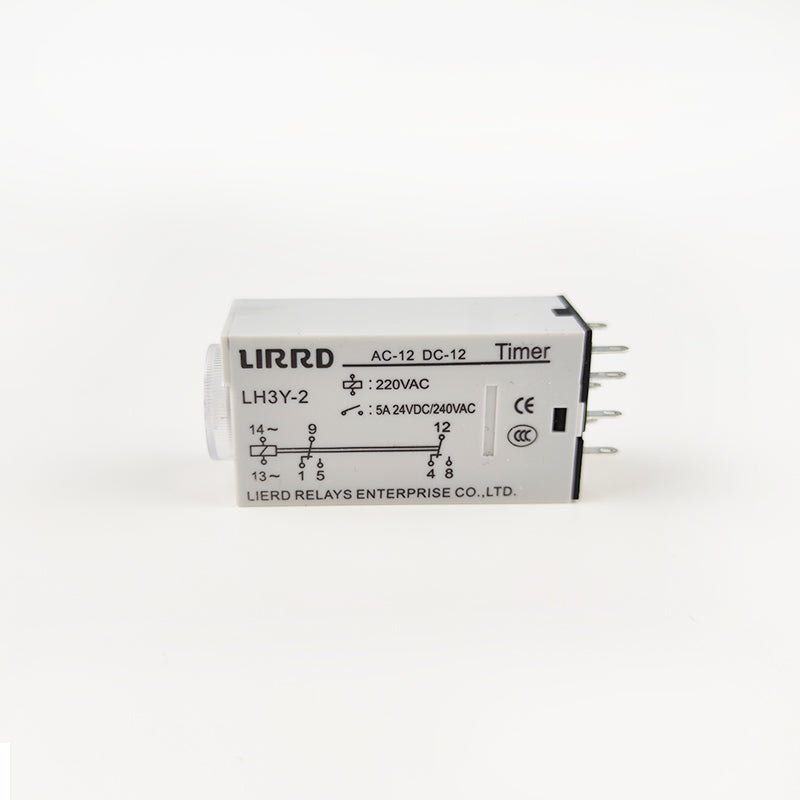

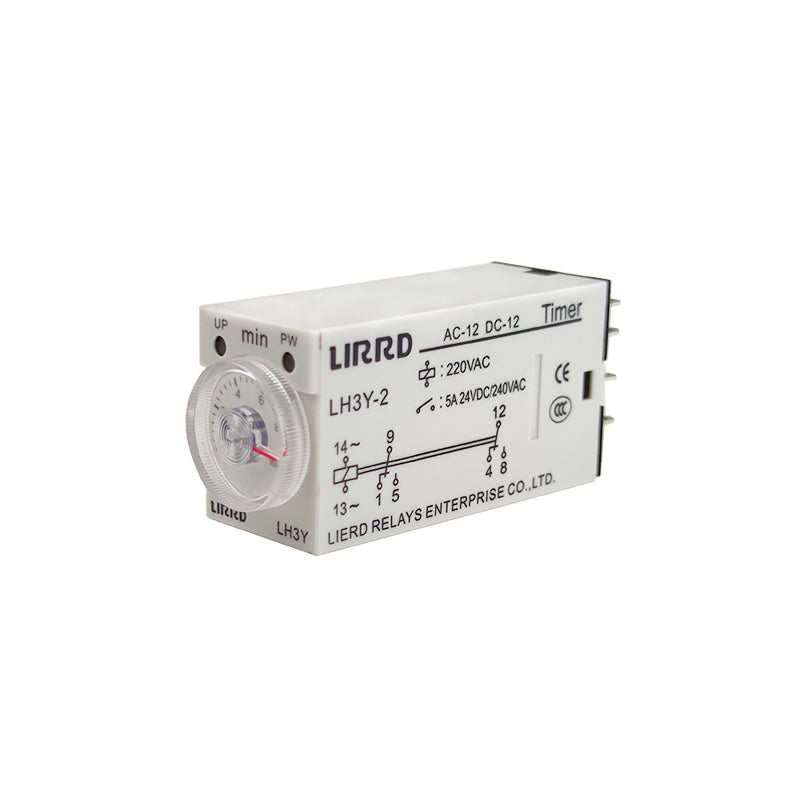

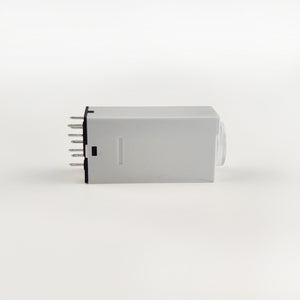

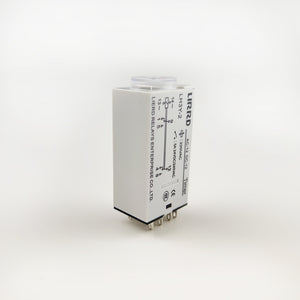

Time Relay LH3Y-2 DC24V
Time Relay LH3Y-2 DC24V
Time Relay LH3Y-2 DC24V
Time Relay LH3Y-2 DC24V
Time Relay LH3Y-2 DC24V

Time Relay LH3Y-2 DC24V

Regular price
$5.12
Sale price
$5.12

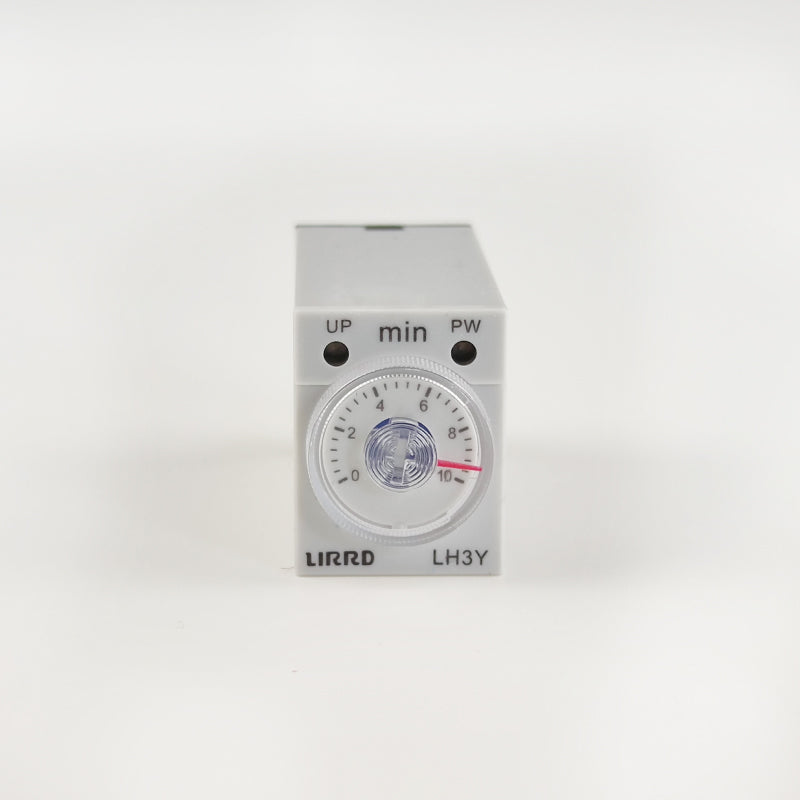

Front_View-LH3YRelay Application

Classification Time Relay
Model LH3Y
Dimension(mm) 28.0H * 21.5W * 63.0L
Full Timing Range SEC:1, 5, 10, 30, 60
MIN:3, 5, 10, 30, 60
HR:3, 5, 10, 12
Rated Voltage AC:12V- 24V- 110/220V
DC:240V- 380V 50/60Hz    DC: 12V- 24V
Indicator Operating Power, up
Contact Model H3Y-2(ST6P-2) H3Y-4(ST6P-4)
1C Time Limit
2C Time Limit 5A 3A(4C)
1C Instantaneous
Service Life Mechanical 5*106 times
Electrical 105 times
Accuracy Repeat Error ±3% max. ±1.5% max.
Setting Error ±10% max ± 50ms
Voltage Error ± 2% max.
Temp Error ± 5% max.
Reset Time 0.2sec max.
Power Consumpting 3VA
Ambient Temperature -10~+55 °C
Ambient Humidity 48~85%RH
Weight 45g
Mounting&Socket Surface PYF08A PYF14A
Flush With Y-20 adapter

LH3Y_Installation_Dimensions_and_Connection_Diagram
