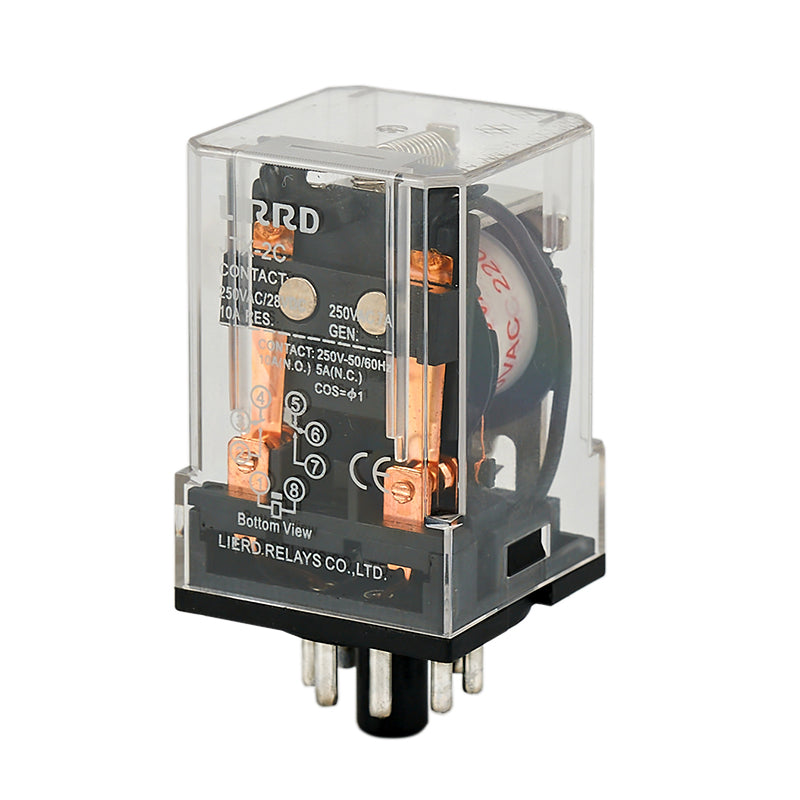

Mini Electromagnetic Relay LJTX-2C

Mini Electromagnetic Relay LJTX-2C

Regular price
Sold out
Sale price



Dimention(mm) 34.5*34.5*53
Contact Form 2Z 2H 2D 3Z 3H 3D
Contact Material Silver Alloy
Resistance Performance Of Contactor Capacity 5A/28VDC, 5A/250VAC
Coil Power at 23°C DC(W) ≤2W
AC(VA) ≤3.5VA
Coil Voltage DC(V) 6~220V
AC(V) 6~380V
Pick-up Voltage at 23°C  DC≤75%  AC≤80%
Drop-out Voltage at 23°C   DC≥10%  AC≥30%
Max Voltage at 23°C 110%
Contact Resistance(at 6VDC 1A) ≤100mΩ
Dielectric Strength Between Open Contacts ≥1200VAC 50Hz/1min Leakage Current 1mA
Contacts Pieces ≥1500VAC 50Hz/1min Leakage Current 1mA
Between Coil & Contacts ≥1500VAC 50Hz/1min Leakage Current 1mA
Insulation Resistance(MΩ) at 500VDC ≥100MΩ
Service Life Electrical 105 Times(Frequency:On 1 Time/1S,Off 1 Time/1S)
Mechanical 106 Times(Frequency:300 Times/1min)
Ambient Temperature -25°C ~ +55°C
Teminal Type Insert Type
Suitable Socket LPF083A LPF083A-E LPL08 LPF113A LPF113A-E LPL11
Product Weight 76g
Same Reference

LJQX-10F, LJTX Installation Dimensions And Connecting Diagram
