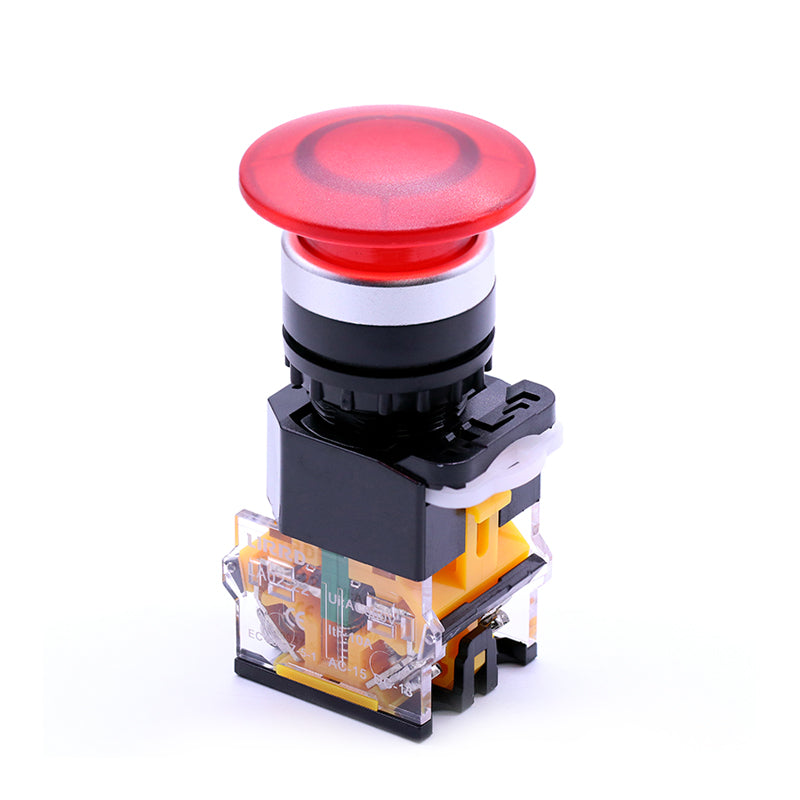

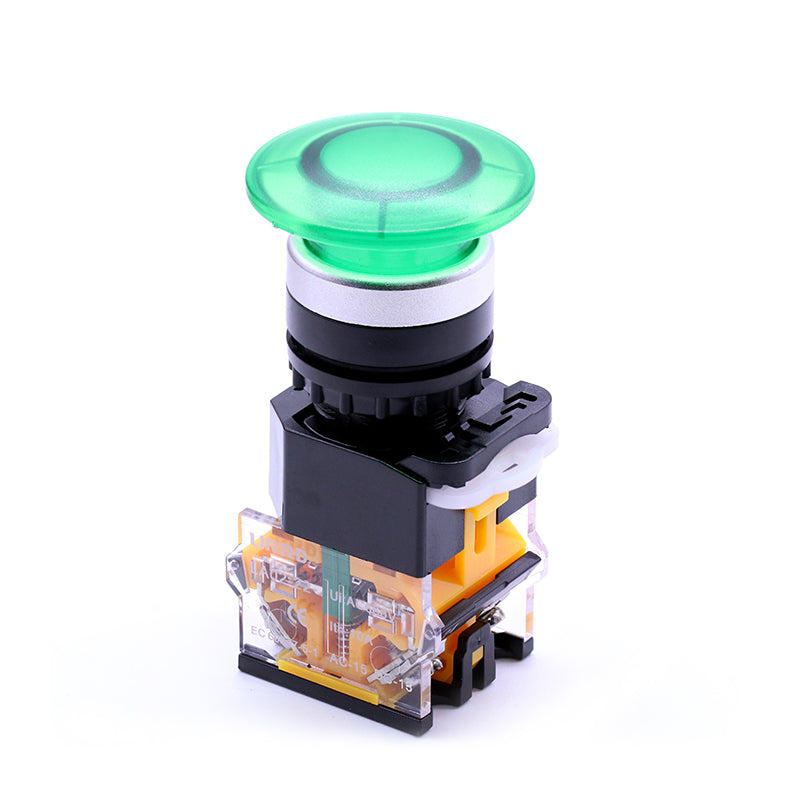

| Product | LA02-22D Push Button | |
| Operating Environment | Temperature | -25~+55℃(No Freezing) |
| Humidity | 45~85%RH(No Condensation) | |
| Contacts Material | Silver Alloy | |
| Contact Resistance | ≤50mΩ | |
| Insulation Resistance | ≥100mΩ | |
| Dielectric Strength | 3000V, Alternating Current 50Hz | |
| Vibration Resistance | 50Hz, Amplitude 1.0mmp-p | |
| Shock Resisitance | ≥10g | |
| Life | Mechanical | Momentary Type: ≥1,000,000 times Selector Type: ≥500,000 times Key-lock Type, Emergency Type: ≥200,000 times |
| Electrical | ≥50,000 Times | |
| Terminal | Thread connection, diameter of welded wire: 2*1.5mm Max |
|
| Connecting link: 6.3*0.8mm | ||
| Operating Force | 800gf~2200gf | |
| Operating Distance | A, B, C Type: About 5.5mm(button) | |
| K Type: about 3.8mm(button) | ||
| Switch Ratings | ||||||||
| Rated Insulation Voltage | Ui: 500V | |||||||
| Thermal Current | Ith: 10A | |||||||
| Rated Voltage | 24V | 48V | 110V | 220V | 380V | 500V | ||
| Working Current |
AC 50/60 Hz |
AC-12 | 10A | - | 10A | 6A | - | - |
| AC-15 | 10A | - | 6A | 3A | 1.8A | 1.4A | ||
| DC | DC-12 | 8A | 4A | 2.2A | 1.1A | - | - | |
| DC-13 | 4A | 2A | 1.1A | 0.6A | - | - | ||
| Installation Dimension | ||||
| Type | A | B | C | Remarks |
| Normal | φ22.5 or φ25.5 or φ30.5 |
≥50 | ≥35 | Unit: mm B and C are minimum dimensions. |
| Key-lock | ||||
| Mushroom | ≥42 | |||
| Big Mushroom | ≥70 | ≥70 | ||
