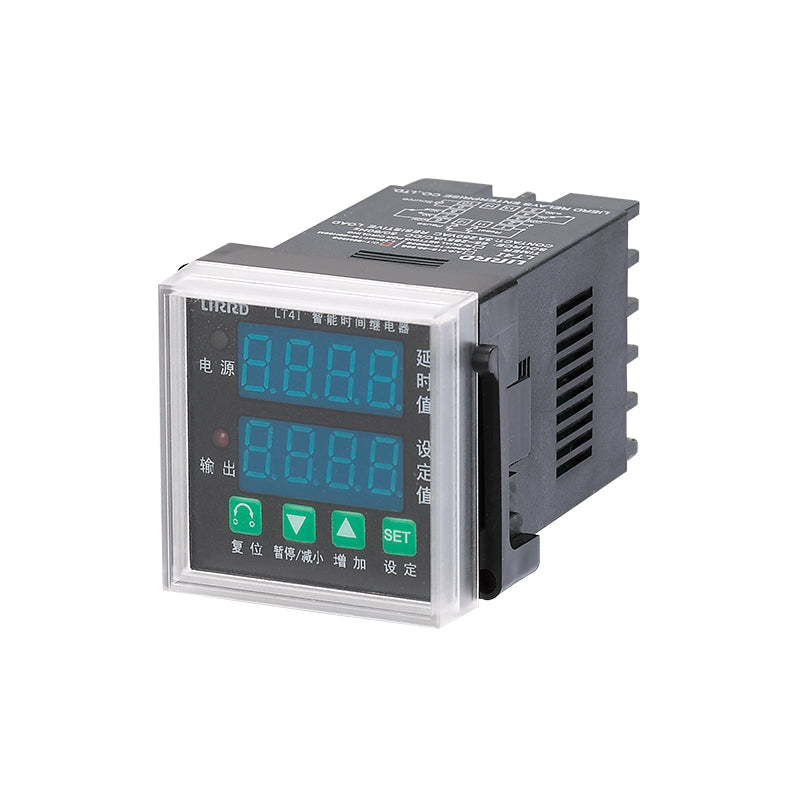

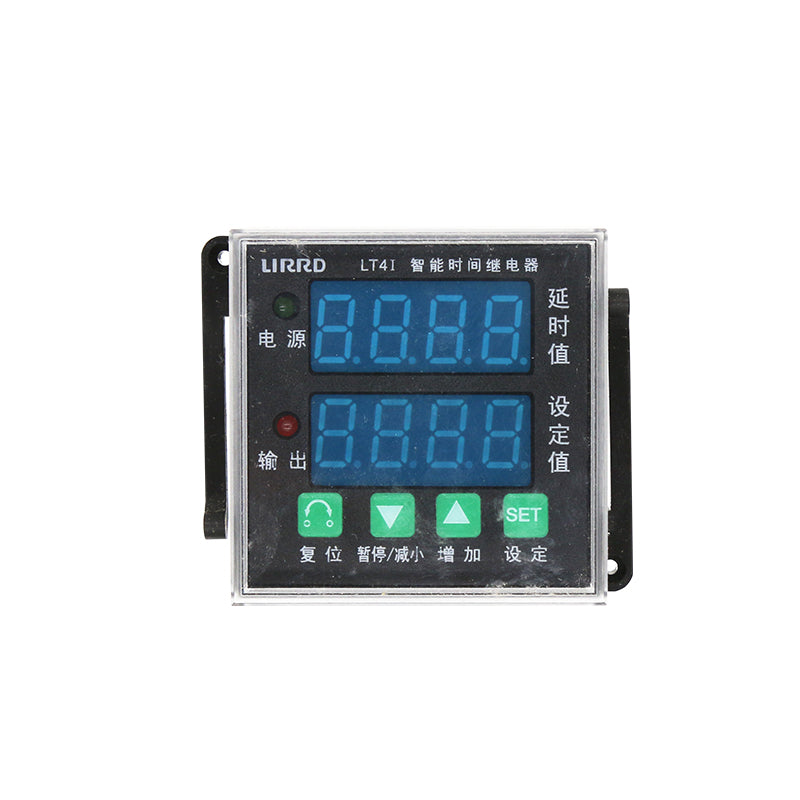

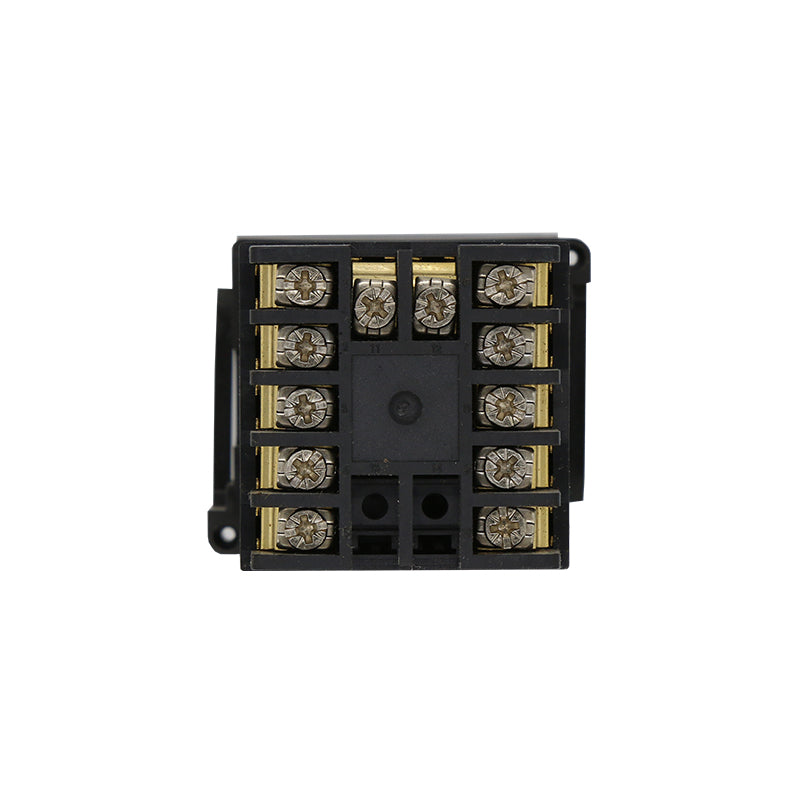

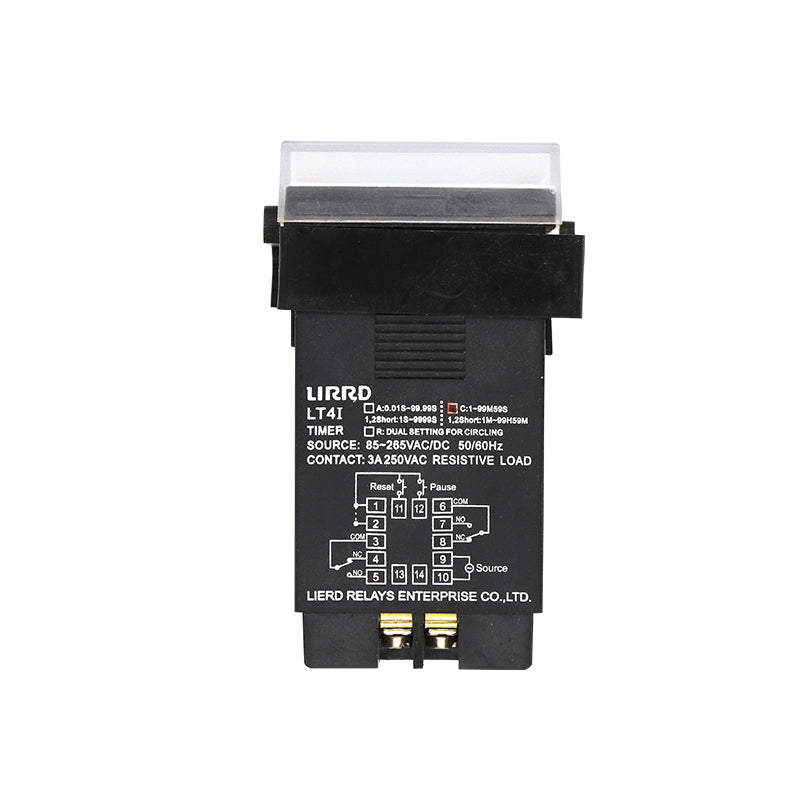

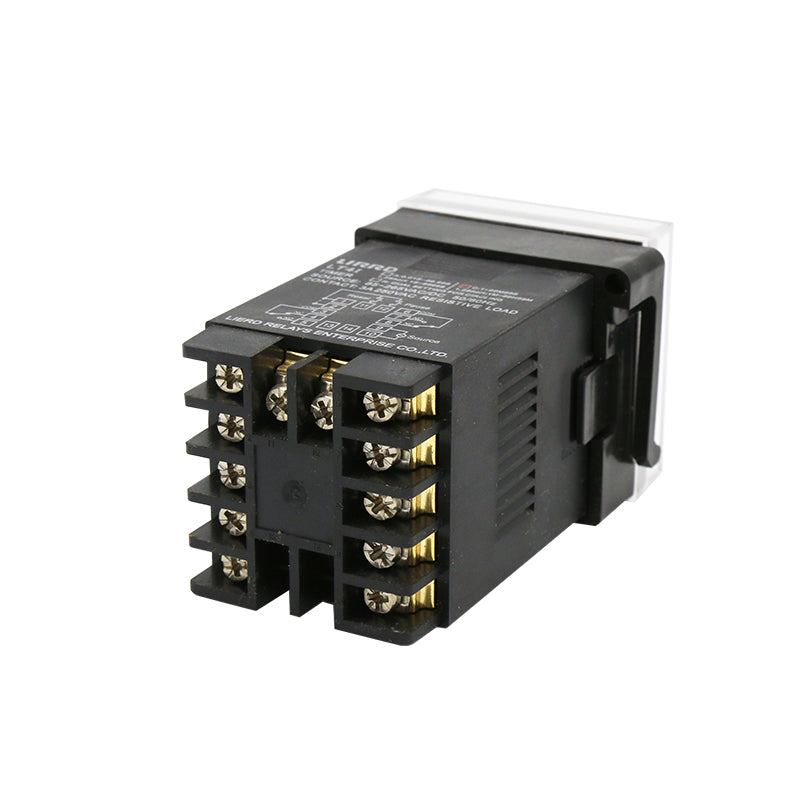

Front_View-LT4I

Relay Application

Class LT4I Intellectual Type Time Limit Time Relay
Type LT4I -AB
(R denotes double cycle type for option)
LT4I -CD
(R denotes double cycle type for option)
Rated Working Voltage 85~265VAC/DC input free, other working voltage upon request
Power Consumption Less Than 5W
Contact Capacity 2 groups of relay output, capacity: impedance load max 5A/250VAC or 5A/28VDC
Time Range 0.01 Sec- 9999 Sec(Choose bottom terminals) 0.01 Sec- 99Hr/59Min(Choose bottom terminals)
Time Scale Mode Decimal System Sexagesimal
Display Mode Power indicator light, action indicator light of relay,
and bicolor digital displays the current delay
Data Setting Storage Adopting EEPROM, the action mode of relay and data preset storing time not less than 10 years
Action Mode Of Relay Four kinds of modes(Remark 1)
Accuracy Voltage affects error, repetitive error less than ± 50PPM and preset error is 0
Signal Input Reset and pause signal input is contact or NPN (emitter to common terminal 1),
adopting photoelectric coupling solation, signal width should not less than 0.02 Sec
Operating Enviroment Ambient Temperature: -10~+55 °C (nonfreezing) Ambient Humidity: 35~85%RH
Service Life Mechanical life: 5*106 times, electric life: 1*106 times
Weight About 121g

Remark 1 : Output relay can preset any of the four working modes,see the following table

Code Of Preset Mode Working mode instruction for outputting relay
H-. on;  d-.of Starting delay after power on, relay closes after reaching preset value
H-. of;  d-.of Not delay after power on, to make it work through panel reset key or bottom reset terminals,
relay closes after reaching preset value
H-. on;  d-.on Starting delay after power on, relay closes and it releases after reaching preset value
H-. of;  d-.on Not delay after power on,relay closes, to make it work through panel reset key or bottom reset terminals,relay releases after reaching preset value

To set the above four kinds of working modes for relay as the following operations:
for LT4I press reset without stop before power on, after power on,LED displays any of the above four codes,
to set the needed one via "∧" "∨" key,then press "set" to confirm, cut off the power and power on again.


Connecting Diagram And Dimension-LT4I
