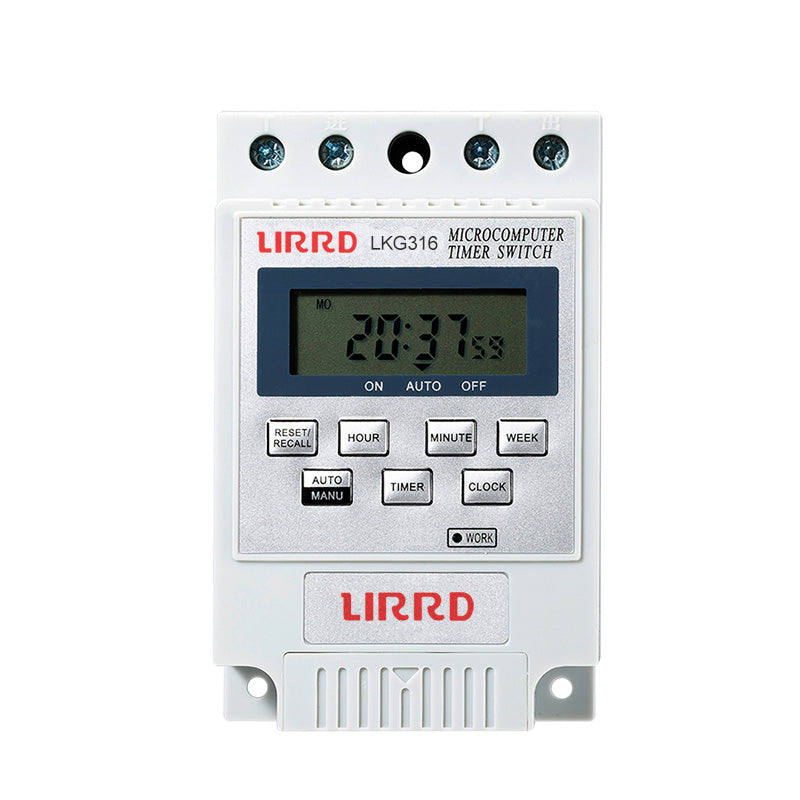

Front View-KG316T

Wholesale Battery Powered Microcomputer Street Light Timer Switch KG316T

Regular price
$5.35
Sale price
$5.35

Front View-KG316Timer Switch Application

Type LKG316
Working Voltage 100,110,115,120,127,220,230,240VAC/12,24VDC
Voltage Range 85~110%
Power Source Frequency 50/60HZ
Power Reserve Time 5 Years
Contact Capacity(Resistance) 25A 250VAC
Control Electrical Life 100000 Times
Mechanical Life 10000000 Times
Battery Model Triple a Battery 1.5V
Setting Switch 10 Times Open And 10 Times Off
Consumed Power <4W
Timing Control Range 1 min- 168 hours
Average Error 0.5s/24h,25℃
Mini Interval 1 min
Main Color White(Gray), Black
Temperature -25℃~ +60℃
Relative Humidity <95%
Weight 205g
Dimensions 120*75*51mm
Installation Guide Rail & Wall Mounting & Panel
Shell Material PC Material, Proof Flame
Dimension-KG316
Details-KG316
Structure-KG316
Wiring Diagram-KG316
Setting Method-KG316
